Private AI Inference on Lenovo ThinkAgile VX and FX V4 with Intel Xeon 6 and VMware Cloud Foundation

Enterprise interest in generative AI has moved past experimentation. Organizations are putting retrieval-augmented generation, intelligent assistants, and automated document processing into production, and for many of them the hard part now has less to do with the model and more to do with where and how it runs.

Regulatory requirements, data residency rules, and internal security policies are pushing organizations toward private AI: inference that stays on infrastructure the organization owns and governs, instead of sending sensitive data to a third-party API. At the same time, infrastructure teams don't want to build a second, parallel stack just for AI.

A private AI platform has to work with the tools, processes, and staff already running virtualization, storage, and networking. Lenovo ThinkAgile VX and FX V4 systems, powered by Intel Xeon 6 processors and built on VMware Cloud Foundation, extend that same operating model to AI inference, without a separate silo of specialized hardware and management tools.

Figure 1. ThinkAgile VX650 V4 (top) and VX630 V4 (bottom) designed for VMware hyperconverged infrastructure

As organizations move AI initiatives from pilot to production, the requirements change. A proof of concept can run on a single server or a public API with a small, hand-picked dataset; production inference has to serve real users, work with sensitive business data, and meet the same availability, security, and audit requirements as any other business-critical application. Many organizations also find that much of this inference could run on the infrastructure they already operate, but lack a clear way to bring AI onto it without adding complexity.

Organizations making this shift typically face four challenges:

• Data governance and residency: sensitive data used for retrieval-augmented generation and document processing often cannot leave the organization's own infrastructure, which rules out public inference APIs for many use cases.
• Operational silos: dedicated AI clusters, built on different hardware, hypervisors, and management tools than the rest of the data center, add a second set of skills, processes, and vendors for IT teams to support.
• Right-sizing: without a common platform for AI and traditional workloads, organizations either over-provision specialized accelerators for inference that does not need them, or under-provision and hit performance walls as usage grows.
• Security and multi-tenancy: different teams and business units need access to different models and datasets, with consistent role-based access control and network isolation between AI services and the applications around them.

None of this is unique to AI. IT organizations already handle governance, operations, and capacity planning for every other workload; AI just adds one more class of application to that list.

Lenovo, Intel, VMware, and Canonical combine into a stack that runs private AI inference on the same infrastructure, tools, and staff already running enterprise applications.

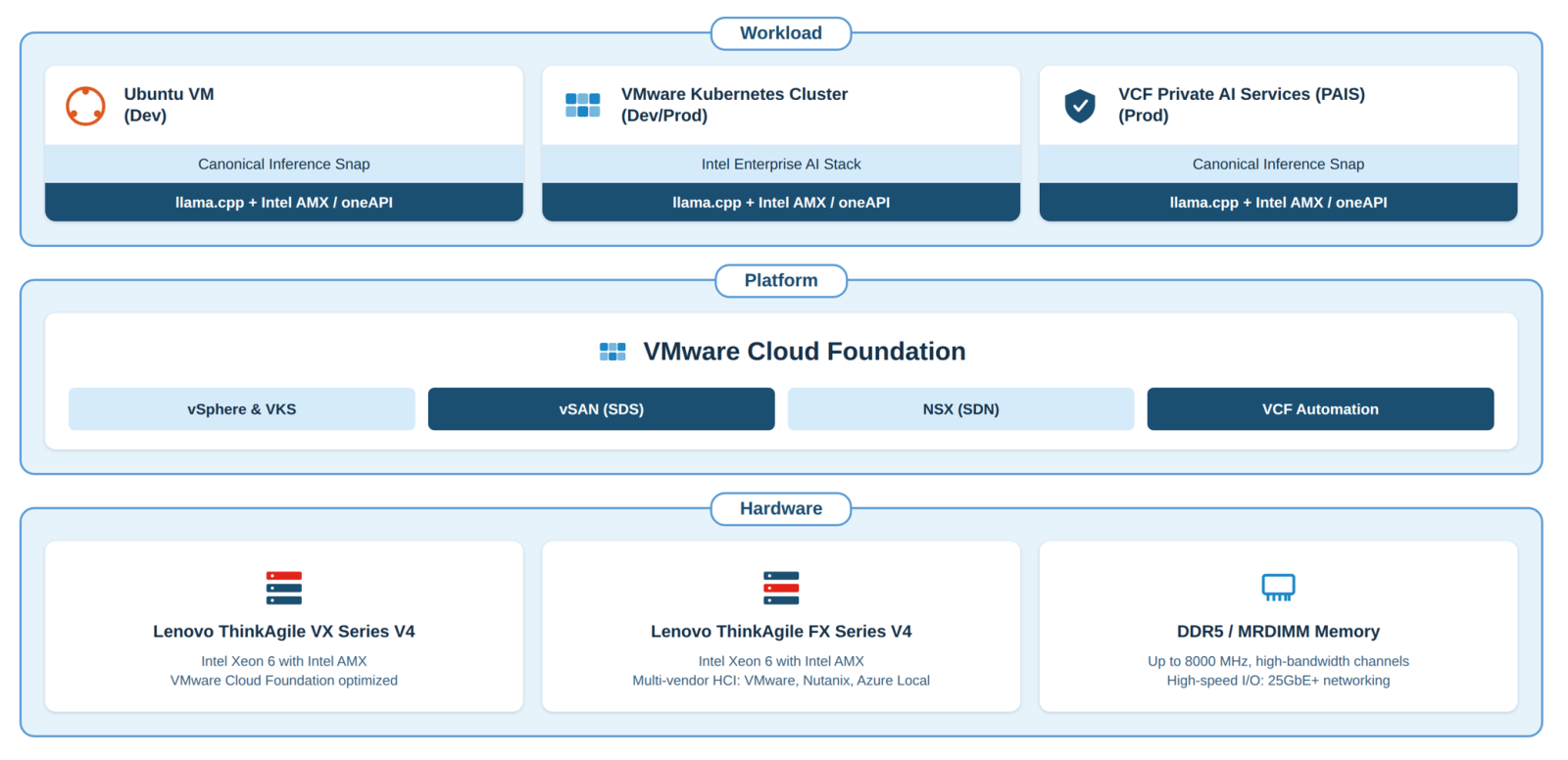

Figure 2. Private AI reference architecture on Lenovo ThinkAgile VX V4 and FX V4

Hardware: Lenovo ThinkAgile VX and FX V4

Lenovo offers two hyperconverged platforms built on Intel Xeon 6 processors for this architecture. Lenovo ThinkAgile VX V4 is purpose built and factory integrated for VMware Cloud Foundation and VMware vSphere Foundation. Lenovo ThinkAgile FX V4 shares the same Intel Xeon 6 hardware but supports VMware, Nutanix, and Microsoft Azure Local on a single appliance design, so organizations that haven't standardized on one HCI stack, or want the option to change later, can use common hardware across VMware and non-VMware environments.

Both ThinkAgile FX and ThinkAgile VX include Intel Advanced Matrix Extensions (Intel AMX) for accelerating the matrix multiplication at the core of transformer-based inference, supporting BF16 and INT8 precision without a dedicated accelerator for many enterprise inference workloads. Intel AMX is also available on 4th Gen Intel Xeon Scalable processors and newer, so organizations can begin running inference on servers already in their data center and move to ThinkAgile VX and FX V4 as part of a planned refresh.

The 2U ThinkAgile VX650 V4 and FX650 V4 and the 1U ThinkAgile VX630 V4 and FX630 V4 all support up to 86 cores per node and DDR5 memory, including Multiplexed Rank DIMMs (MRDIMMs) at up to 8000 MHz, to ease the memory bandwidth pressure that constrains large language model inference. The 2U VX650 V4 and FX650 V4 add optional GPU acceleration, managed within the same VCF environment, for organizations running larger models or higher-throughput inference workloads; the 1U VX630 V4 and FX630 V4 do not support GPUs and are sized for CPU-only inference.

Figure 3. ThinkAgile FX650 V4 (top) and FX630 V4 (bottom) designed for flexible hyperconverged infrastructure

Platform: VMware Cloud Foundation

VMware Cloud Foundation (VCF) provides the common operational layer across AI and traditional workloads: vSAN for software-defined storage, NSX for software-defined networking and micro-segmentation, and VCF Automation and Operations for lifecycle management. VCF Private AI Services extends this same operational model to AI specifically, supporting controlled model rollout, version management, Workload Domains for multi-tenancy, and role-based access control for AI resources, all governed by the same policies applied to the rest of the environment. vSphere Trust Authority and Virtual Trusted Platform Module (vTPM) help verify workload integrity before sensitive data or AI models are deployed.

Software: operating system and inference tooling

For organizations standardizing on Ubuntu, Canonical's operating system and Inference Snaps simplify model deployment: Inference Snaps detect the underlying hardware and install a matched runtime and model with a single command, and Ubuntu Pro extends security maintenance and compliance support across the environment. As of VCF 9.1, Ubuntu is a first-class citizen within VCF, with streamlined deployment and lifecycle management.For a standardized serving layer across teams, Intel AI for Enterprise Inference provides Kubernetes-based model serving with an API gateway, identity and access management, observability, and OpenAI-compatible APIs, complementing the lifecycle management in VCF Private AI Services.

Management: Lenovo XClarity

Lenovo XClarity Controller and Lenovo XClarity One give administrators a single view of firmware, health, and lifecycle management across the ThinkAgile VX and FX estate, consistent with how the rest of the Lenovo infrastructure is already managed.

The use cases below share a common thread: each depends on sensitive data that should stay inside the organization, and each benefits from running on the same governed VMware Cloud Foundation platform as the surrounding applications. All three can run CPU-only on Intel Xeon 6 processors with Intel AMX, with optional GPU acceleration on the 2U ThinkAgile VX650 V4 and FX650 V4 where larger models or higher throughput call for it.

• Retrieval-augmented generation and intelligent assistants

  Organizations building internal chat assistants and knowledge search tools use retrieval-augmented generation to ground responses in proprietary documents, wikis, and databases. Running this inference on Lenovo ThinkAgile VX or FX V4 keeps that proprietary content inside the data center rather than sending it to an external API, while Intel AMX acceleration on Intel Xeon 6 processors delivers the token throughput these interactive workloads need without provisioning a separate GPU cluster.

• Document processing and summarization

  Legal, compliance, and operations teams increasingly use generative AI to summarize contracts, reports, and case files. Because this content is often sensitive and high volume, private inference on infrastructure already covered by existing compliance controls avoids exposing documents to third-party services, while VCF Private AI Services manages model versions as summarization requirements evolve.

• Multi-tenant AI services across business units

  As more teams across the enterprise adopt AI, they need access to different models and datasets under different policies. VCF Workload Domains and NSX micro-segmentation let organizations isolate AI services by business unit or project on shared ThinkAgile VX or FX V4 infrastructure, with role-based access control and audit capabilities governing who can deploy, update, or query each model.

Private AI inference on Lenovo ThinkAgile VX and FX V4 generally falls into two workload profiles, and two considerations determine how to size for them. Because the VX630 V4, VX650 V4, FX630 V4, and FX650 V4 support the same Intel Xeon 6 processor options and DDR5 and MRDIMM memory configurations, this guidance applies across the family. It describes how CPU-based inference behaves in general, not results measured on this specific hardware:

• Interactive workloads: chat assistants and retrieval-augmented generation queries, which typically serve a modest number of concurrent users per node at low-latency response times.
• Departmental and API-driven workloads: document summarization and batch processing services, which trade higher per-request latency for greater concurrency and throughput per node.
• Memory bandwidth: for transformer-based inference, memory bandwidth governs token generation throughput more than core count does. Intel Xeon 6 processors with MRDIMMs at up to 8000 MHz help sustain throughput as context length and concurrency grow.
• Validation before rollout: Lenovo recommends benchmarking the actual model and workload with tools such as vLLM bench serve and llama-bench to confirm service levels and node count before moving to production.

Running private AI inference on Lenovo ThinkAgile VX and FX V4 delivers outcomes that come from how the stack is built, not from a published benchmark. In this architecture, memory bandwidth and Intel AMX acceleration, not GPU-class parallelism, govern throughput. The outcomes below describe how Intel Xeon 6-based inference and this software stack behave in general, not figures Lenovo measured on ThinkAgile VX or FX V4:

• Predictable scaling: CPU-based inference capacity grows as nodes are added to a cluster, so organizations can size toward a target number of concurrent users in node increments and confirm each step with benchmarking.
• No parallel AI environment: running AI workloads on the same VMware Cloud Foundation platform as everything else avoids the cost of a separate AI stack, with shared hardware, operational tooling, and staff.
• Faster path to production: Canonical Inference Snaps remove the manual tuning work a from-scratch deployment normally takes, shortening the move from pilot to production.
• Lower platform risk: ThinkAgile FX V4 supports multiple HCI software platforms, so the organization can change its HCI software later without a hardware refresh.

Private AI works best when it extends the infrastructure, operations, and governance an organization already has, instead of replacing them. Lenovo ThinkAgile VX and FX V4, built on Intel Xeon 6 processors with Intel AMX acceleration and VMware Cloud Foundation, give IT organizations a practical way to run retrieval-augmented generation, document processing, and multi-tenant AI services alongside their existing applications, on infrastructure they already operate. From there, Lenovo can help size and benchmark the architecture for each organization's specific workload.

To learn more about private AI inference on Lenovo ThinkAgile VX and FX V4, contact your Lenovo representative or Lenovo Business Partner, or visit the resources below.

References:

• VMware Cloud Foundation on Lenovo ThinkAgile VX and FX Reference Design:
  https://lenovopress.lenovo.com/lp1533-vmware-cloud-foundation-on-lenovo-thinkagile-vx-fx-reference-design
• Lenovo ThinkAgile VX650 V4 Hyperconverged System Product Guide:
  https://lenovopress.lenovo.com/lp2135-lenovo-thinkagile-vx650-v4-hyperconverged-system
• Lenovo ThinkAgile FX650 V4 Hyperconverged System Product Guide:
  https://lenovopress.lenovo.com/lp2338-lenovo-thinkagile-fx650-v4-hyperconverged-system
• Multi-Vendor Hyperconverged Infrastructure with Lenovo ThinkAgile FX V4:
  https://lenovopress.lenovo.com/lp2520-multi-vendor-hyperconverged-infrastructure-with-lenovo-thinkagile-fx-v4
• Lenovo ThinkAgile VX630 V4 Hyperconverged System Product Guide:
  https://lenovopress.lenovo.com/lp2134-lenovo-thinkagile-vx630-v4-hyperconverged-system

Chris Honoré is a Solutions Product Manager at Lenovo with deep expertise in datacenter products and solution offerings. He has a strong background in consulting and solution development, helping customers design and support on-premises and hybrid environments. Chris has spent the past 15 years with IBM and Lenovo, specializing in x86 server and data center solutions. Prior to that, he built two decades of experience in the telecommunications industry, serving in both technical and business leadership roles.
