The Lenovo ThinkAgile HX650 V4 systems are 2-socket 2U systems that feature the 6th Generation Intel Xeon Scalable processors (formerly code named "Granite Rapids"). ThinkAgile HX650 V4 models are designed for deploying industry-leading hyperconvergence software from Nutanix on Lenovo enterprise platforms. Nutanix brings the benefits of web-scale technologies to enterprise applications through enterprise storage, data protection, infrastructure resilience, management and analytics, and security.
The Lenovo ThinkAgile HX650 V4 systems delivers fully validated and integrated Lenovo hardware and firmware, certified and preloaded with Nutanix software. In Premier countries it includes ThinkAgile Premier support with one single point of contact for support of the hardware and software. For Non-Premier countries, hardware support is provided y Lenovo and software support is provided by Nutanix.
This product guide provides essential pre-sales information to understand the ThinkAgile systems, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ThinkAgile HX offerings and consider their use in IT solutions.
Focusing on customer service:
With 1,500 stores throughout Mexico, it is one of Latin America’s largest and best-known optical retail chains. To enhance service delivery both in-store and online, Opticas Devlyn runs its critical systems on Lenovo ThinkSystem SR650 V2 servers powered by 3rd Gen Intel® Xeon® Scalable processors.
Inspiring K-12 student success through esports
To boost student engagement and educational attainment, GOAL High School partnered with Lenovo to rapidly scale out its esports programs. In just five years, GOAL has increased esports participation by 30x—and students who take part in contests perform an average of 22% better in academic classes.
Introduction
The Lenovo ThinkAgile HX650 V4 systems are 2-socket 2U systems that feature the 6th Generation Intel Xeon Scalable processors (formerly code named "Granite Rapids"). ThinkAgile HX650 V4 models are designed for deploying industry-leading hyperconvergence software from Nutanix on Lenovo enterprise platforms. Nutanix brings the benefits of cloud-scale technologies to enterprise applications through enterprise storage, data protection, infrastructure resilience, management and analytics, and security.
The 2U systems are available as:
- HX650 V4 system for high performance workloads, AI Inferencing, Private\Hybrid Clouds.
- HX650 V4 Storage system for storage-heavy workloads
ThinkAgile HX650 V4 systems deliver fully validated and integrated Lenovo hardware and firmware, certified and preloaded with licensed Nutanix software. They also include ThinkAgile Premier support with one single point of contact for support of the hardware and software.

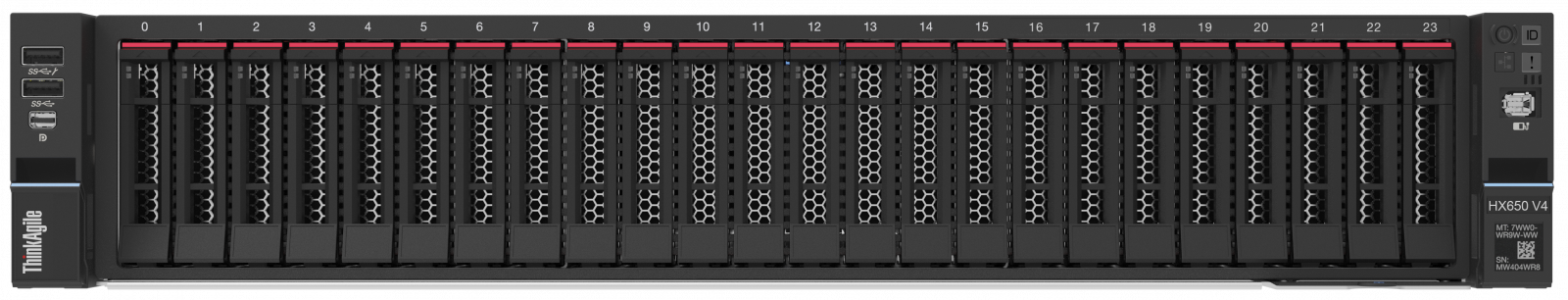

Figure 1. Lenovo ThinkAgile HX650 V4 systems with 2.5-inch drive bays
Did you know?
The ThinkAgile HX650 V4 systems are built on the Lenovo ThinkSystem SR650 V4 server that features enterprise-class reliability, management, and security.
The HX650 V4 Systems offer ThinkAgile Premier Single Point of Support for quick 24/7 problem reporting and resolution.
Key features
Combining performance and flexibility, the ThinkAgile HX650 V4 are a great choice for enterprises of all sizes. The systems offer a broad selection of processors, memory and drives, and offers high performance features that industries such as finance, healthcare and telco need. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design can improve your business environment and can help save operational costs.
ThinkAgile HX features
The ThinkAgile HX650 V4 and HX650 V4 Storage systems offer the following key features:
- Factory-integrated, pre-configured ready-to-go integrated systems built on proven and reliable Lenovo ThinkSystem servers that provide compute power for a variety of workloads and applications and powered by industry’s most feature-rich hyperconverged infrastructure software from Nutanix.
- Provide quick and convenient path to implement a hyperconverged solution powered by Nutanix with "one stop shop" and a single point of contact provided by Lenovo for purchasing, deploying, and supporting the solution.
- Meet various workload demands with cost-efficient hybrid or performance-optimized all-NVMe storage configurations.
- Deliver fully validated and integrated hardware and firmware that is certified with Nutanix software.
- Include Lenovo ThinkAgile Premier Single Point of Support for quick 24/7 problem reporting and resolution.
- Offer Lenovo deployment services to get customers up and running quickly.
- Built on proven and reliable Lenovo ThinkSystem servers that provide compute power for a variety of workloads and applications.
- Preloaded with Nutanix software and ready for out-of-box deployment (Note: software licenses are optional and are recommended to be purchased from Lenovo for a smoother experience).
- Provide flexibility in using the existing Nutanix term-based software licenses and active support contracts or purchasing new software licenses and support contracts from Nutanix.
- Offer optional Lenovo Professional Services to get customers up and running quickly
The Nutanix software running on the ThinkAgile HX650 V4 delivers the following key features:
- Mission-critical performance and ultra-reliability of Lenovo’s platforms married with the dramatic efficiency and cost savings of the industry-leading Nutanix Enterprise Cloud OS .
- A natively integrated solution for data protection and continuous availability at VM granularity that gives administrators an affordable range of options to meet the recovery point objectives (RPO) and recovery time objectives (RTO) for different applications.
- A fault resistant platform, with no single point of failure and no bottlenecks with shared-nothing architecture, where all data, metadata and services are distributed to all nodes within the cluster, that is built to detect, isolate and recover from failures anywhere in the system.
- An intuitive user-centric management experience to simplify every aspect of the IT infrastructure lifecycle and provide a single pane of glass to monitor and control Nutanix clusters, with simplified workflows and rich automation for common administrative tasks.
- Powerful security features, such as two-factor authentication and data-at-rest encryption, with a security development lifecycle that is integrated into product development to help customers meet the most stringent security requirements.
Hardware features
The HX systems are based on the SR650 V3 and have the following hardware features:
Scalability and performance
The HX650 V4 offer numerous features to boost performance, improve scalability and reduce costs:
- Supports one or two Intel Xeon 6700-series or 6500-series processors with Performance-cores (P-cores)
- Up to 86 cores and 172 threads
- Core speeds of up to 4 GHz
- TDP ratings of up to 350 W
- Support for DDR5 memory DIMMs to maximize the performance of the memory subsystem:
- Up to 32 DDR5 memory DIMMs, 16 DIMMs per processor
- 8 memory channels per processor (2 DIMMs per channel)
- Supports 1 DIMM per channel operating at 6400 MHz
- Supports 2 DIMMs per channel operating at 5200 MHz
- Using 256GB 3D RDIMMs, the server supports up to 8TB of system memory
- Support for MRDIMMs for increased memory bandwidth with memory bus speeds of up to 8000 MHz.
- Supports up to 10x single-width GPUs or 2x double-wide GPUs, for substantial processing power in a 2U system.
- Supports up to 24 x 2.5-inch hot-swap drive bays, by using combinations of front-accessible (up to 24 bays).
- Configurations with 3.5-inch drives support up to 12x 3.5-inch hot-swap front-accessible drives plus 4x 2.5-inch hot-swap rear-accessible drives.
- Supports 24x NVMe drives without oversubscription of PCIe lanes (1:1 connectivity). The use of NVMe drives maximizes drive I/O performance, in terms of throughput and latency.
- M.2 RAID Boot Adapters configured in RAID-1 which enables two NVMe M.2 drives to be configured as a redundant pair.
- Up to 10x PCIe slots (rear accessible), plus two slots dedicated to OCP 3.0 adapters.
- The server has up to two dedicated industry-standard OCP 3.0 slots supporting a variety of Ethernet network adapters. A simple-swap mechanism with a thumbscrew and pull-tab enables tool-less installation and removal of the adapter. The adapter supports shared BMC network sideband connectivity to enable out-of-band systems management.
- The server offers PCI Express 5.0 I/O expansion capabilities that doubles the theoretical maximum bandwidth of PCIe 4.0 (32GT/s in each direction for PCIe Gen 5, compared to 16 GT/s with PCIe Gen 4 and 8 GT/s with PCIe Gen 3). A PCIe 5.0 x16 slot provides 128 GB/s bandwidth, enough to support a dual-port 200GbE network connection.
Availability and serviceability
The HX650 V4 provide many features to simplify serviceability and increase system uptime:
- M.2 boot adapters support RAID-1 which can enable two M.2 drives to be configured as a redundant pair.
- The server has two hot-swap redundant power supplies and up to six hot-swap redundant fans to provide availability for business-critical applications.
- The light path diagnostics feature uses LEDs to lead the technician to failed (or failing) components, which simplifies servicing, speeds up problem resolution, and helps improve system availability.
- Supports a new dedicated Firmware and Root of Trust Security Module that stores all system firmware settings, making it easier to transfer customer settings in the event of a system board replacement, while still maintaining data security
- Solid-state drives (SSDs) offer more reliability and performance than traditional mechanical HDDs for greater uptime.
- Proactive Platform Alerts (including PFA and SMART alerts): Processors, voltage regulators, memory, internal storage (NVMe SSDs, M.2 storage, flash storage adapters), fans, power supplies, server ambient and subcomponent temperatures. Alerts can be surfaced through the XClarity Controller to managers such as Lenovo XClarity Administrator, VMware vCenter, and Microsoft System Center. These proactive alerts let you take appropriate actions in advance of possible failure, thereby increasing server uptime and application availability.
- The built-in XClarity Controller 3 continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failures to minimize downtime.
- Built-in diagnostics in UEFI, using Lenovo XClarity Provisioning Manager, speed up troubleshooting tasks to reduce service time.
- Lenovo XClarity Provisioning Manager supports diagnostics and can save service data to a USB key drive or remote CIFS share folder for troubleshooting and reduce service time.
- Auto restart in the event of a momentary loss of AC power (based on power policy setting in the XClarity Controller service processor)
- Offers a diagnostics port on the front of the server to allow you to attach an external diagnostics handset for enhanced systems management capabilities.
- Support for the XClarity Administrator Mobile app running on a supported smartphone or tablet and connected to the server through the service-enabled USB port, enables additional local systems management functions.
- Three-year customer-replaceable unit and onsite limited warranty (varies by geography), 9 x 5 next business day. Optional service upgrades are available.
Manageability and security
Systems management features simplify local and remote management of the HX650 V4:
- The server includes XClarity Controller 3 (XCC3) to monitor server availability. Optional upgrade to XCC3 Premier to provide remote control (keyboard video mouse) functions, support for the mounting of remote media files (ISO and IMG image files), boot capture and power capping. XCC3 Premier also offers additional features such as Neighbor Groups, System Guard, a CNSA-compliant security mode, a FIPS 140-3-compliant mode, and enhanced NIST 800-193 support.
- Dedicated Ethernet port at the rear of the server for remote management (BMC management).
- Lenovo XClarity Administrator offers comprehensive hardware management tools that help to increase uptime, reduce costs and improve productivity through advanced server management capabilities.
- UEFI-based Lenovo XClarity Provisioning Manager, accessible from F1 during boot, provides system inventory information, graphical UEFI Setup, platform update function, operating system installation function, and diagnostic functions.
- Support for Lenovo XClarity Energy Manager, which captures real-time power and temperature data from the server and provides automated controls to lower energy costs.
- An integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
- Support for industry standard management protocols, IPMI 2.0, SNMP 3.0, Redfish REST API, serial console via IPMI
- An integrated hardware Trusted Platform Module (TPM) supporting TPM 2.0 enables advanced cryptographic functionality, such as digital signatures and remote attestation.
- Administrator and power-on passwords help protect from unauthorized access to the server.
- Supports Secure Boot to ensure only a digitally signed operating system can be used. Supported with HDDs and SSDs, and M.2 drives.
- Industry-standard Advanced Encryption Standard (AES) NI support for faster, stronger encryption.
- Intel Execute Disable Bit functionality can prevent certain classes of malicious buffer overflow attacks when combined with a supported operating system.
- Intel Trusted Execution Technology provides enhanced security through hardware-based resistance to malicious software attacks, allowing an application to run in its own isolated space, protected from all other software running on a system.
- Additional physical security features are an available chassis intrusion switch and available lockable front bezel.
Energy efficiency
The HX650 V4 offer the following energy-efficiency features to save energy, reduce operational costs, and increase energy availability:
- The server supports advanced Lenovo Neptune Core direct-water cooling (DWC) capabilities, where heat from key components is removed from the rack and the data center using an open loop and coolant distribution units, resulting in lower energy costs:
- Processor Neptune Core Module uses liquid cooling to remove heat from the processors
- Energy-efficient system board components help lower operational costs.
- Carbon offset is available at click of button. You can project the carbon emissions per device for an average lifecycle (up to 5 years). That information is available here
- High-efficiency power supplies with 80 PLUS Platinum and Titanium certifications
- Solid-state drives (SSDs) consume as much as 80% less power than traditional spinning 2.5-inch HDDs.
- Support for Lenovo XClarity Energy Manager provides advanced data center power notification, analysis, and policy-based management to help achieve lower heat output and reduced cooling needs.
- The server uses hexagonal ventilation holes, which can be grouped more densely than round holes, providing more efficient airflow through the system and thus keeping your system cooler.
Components and connectors
The ThinkAgile HX650 V4 systems are based on the ThinkSystem SR650 V4 server.

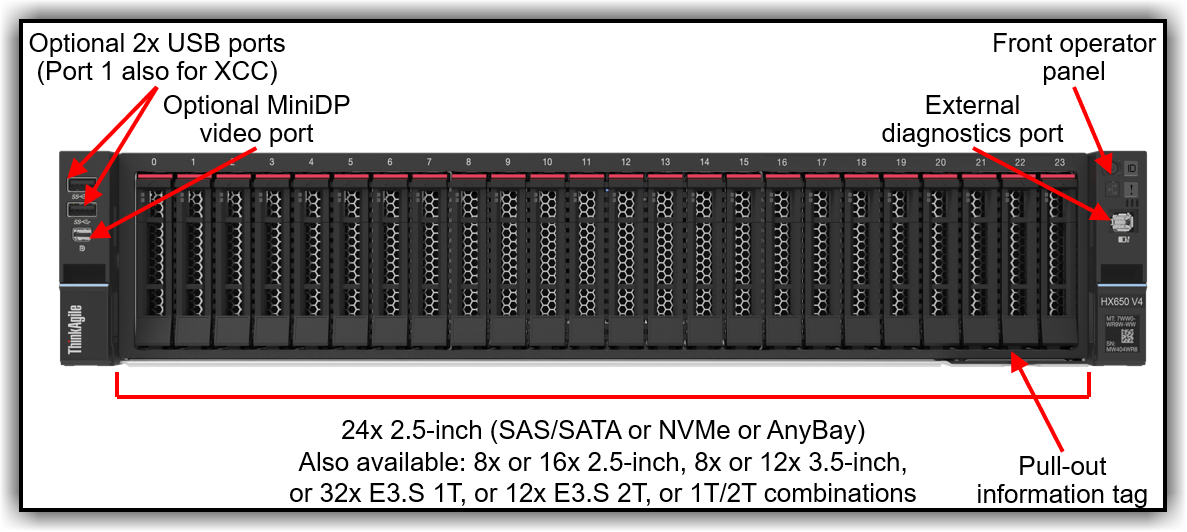

The following figure shows the front of the HX650 V4 with 2.5-inch drives.

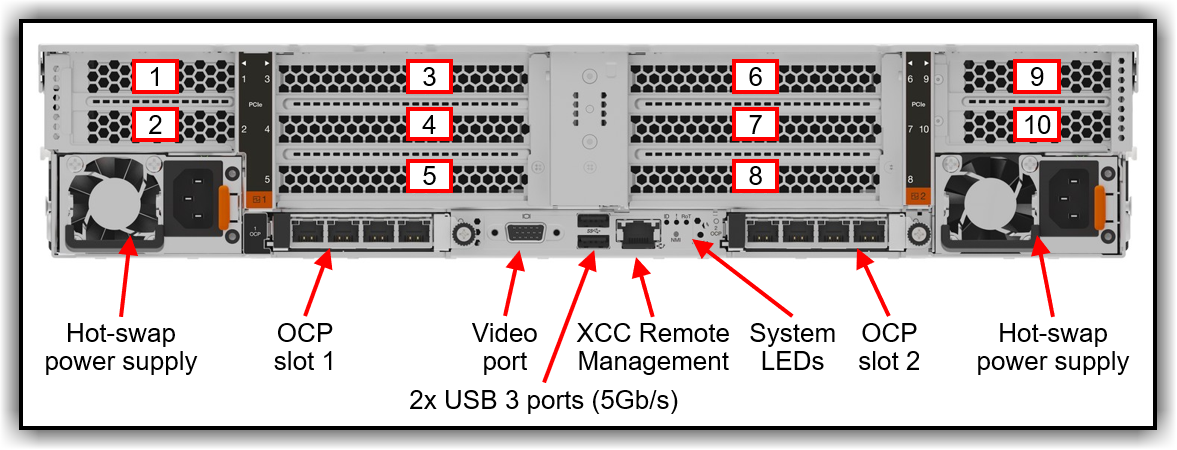

The following figure shows the components visible from the rear of the system. The figure shows one configuration, with ten PCIe slots, however there are additional rear configurations which include 3.5-inch drive bays, 2.5-inch drive bays.
Figure 3. Rear view of the HX systems (configuration with ten PCIe slots)
Standard specifications
The ThinkAgile HX650 V4 systems are based on the ThinkSystem SR650 V4 server.
The following table provides an overview comparison between the HX systems.
** Note: Rear drive kit is for use only with 10 or more HDDs installed in the system
The following table lists the standard specifications.
Components | Specification |
---|---|
Machine types | 7DG4 |
Form factor | 2U rack |
Processor | One or two Intel Xeon 6700P-series or 6500P-series processors (formerly codenamed "Granite Rapids"). Supports processors up to 86 cores and 172 threads, core speeds of up to 4.0 GHz, and TDP ratings of up to 350 W. |
Chipset | None. Integrated into the processor |
Memory | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs and MRDIMMs are supported. RDIMMs operate at up to 6400 MHz at 1 DPC and up to 5200 MHz at 2 DPC. MRDIMMs are supported up to 8000 MHz. |
Memory maximum | Up to 8TB by using 32x 256GB 3DS RDIMMs |
Memory protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs), and memory mirroring. |
Disk drive bays |
M.2 support, for OS boot and drive storage support:
|
Storage controller |
|
Network interfaces | Two dedicated OCP 3.0 SFF slots with a PCIe 5.0 host interface, either x8 or x16. Support a variety of 2-port and 4-port adapters with up to 400 GbE network connectivity. One port of each installed OCP adapter can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support. |
PCIe slots |
Up to 10x slots, all at the rear, plus 2x OCP slots. All slots are PCIe 5.0. The use of Riser 3 and 4 requires 2 processors.
Other slot configurations are available. See the I/O expansion for details. The server also supports rear 2.5" drive bays, instead of some slots. All configurations include at the rear of the server:
|
GPU support | Supports up to 10x single-wide GPUs or up to 2x double-wide GPUs |
Ports |
Front: External diagnostics port, optional 2x USB 3 (5 Gb/s) port, one supports XCC local management, optional Mini DisplayPort (miniDP) v1.1a video port. Rear: 2x USB 3 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in a slot). Support for an optional second RJ-45 1GbE systems management port for XCC remote management (installs in OCP adapter slot). Support for an optional adapter to share an incoming remote management network connection across 4 servers (installs in an OCP slot). Internal: Optional 1x USB 3 (5 Gb/s) connector for operating system or license key purposes |
Cooling | 6x (with two processors installed) or 5x (with one processor installed) single-rotor or dual-rotor hot swap 60 mm fans, configuration dependent. Fans are N+1 redundant, tolerating a single-rotor failure. One fan integrated in each power supply. For customers with water infrastructure in their data center, the server also supports open-loop water cooling for efficient heat removal. |
Power supply | Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 800W, 1300W, 2000W, 2700W and 3200W AC options. All AC power supplies support 230V power; some also support 115V input supply. In China only, all power supply options support 240 V DC. Support for HVDC and -48V DC power supply options. |
Video | Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 3 management controller. Two video ports (rear VGA and optional front Mini DisplayPort); both can be used simultaneously if desired. Maximum resolution is 1920x1200 32bpp at 60Hz. |
Hot-swap parts | Drives, power supplies, and fans. |
Systems management | Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. Clarity Controller 3 (XCC3) embedded management based on the ASPEED AST2600 baseboard management controller (BMC) and OpenBMC, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC3 Premier to enable remote control functions and other features. |
Security features | Chassis intrusion switch, Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security bezel. |
Software |
Nutanix 2.0 PnP: Starter, Pro, and Ultimate editions - Nutanix Cloud Platform, Nutanix Cloud Infrastructure, Nutanix Cloud Manager, NCI-Data |
Hypervisors | Nutanix AHV or VMware ESXi. |
Hardware warranty |
Three-, four-, or five-year customer-replaceable unit and onsite limited hardware warranty with ThinkAgile Premier Support and selectable service levels: 9x5 next business day (NBD) parts delivered, 9x5 NBD onsite response, 24x7 coverage with 2-hour or 4-hour onsite response, or 6-hour or 24-hour committed repair (select areas). Also available are YourDrive YourData, Premier Support, and Enterprise Software Support |
Software maintenance | Three-, four-, or five-year software support and subscription (matches the duration of the selected warranty period). |
Dimensions |
Width: 445 mm (17.5 in.), height: 87 mm (3.4 in.), depth: 796 mm (31.3 in.) |
Weight | Maximum weight: 38.8 kg (85.5 lb) |
Models
Factory-integrated models of the integrated systems and certified nodes are configured by using the Lenovo Data Center Solution Configurator (DCSC), http://dcsc.lenovo.com
During the configuration process, you are selecting one of the base Configure-to-Order (CTO) models first, and then you are adding components (processors, memory, drives, and network adapters) to the selected model according to the output from the Nutanix Sizer tool, http://services.nutanix.com/
To ensure that the controlled GPUs and accelerators are only sold in the supported markets, the following configure-to-order base machine-type models (CTO MTMs) are selectable in DCSC:
- Standard Open models are available in all markets worldwide. Controlled GPUs cannot be configured using these models. These are CTO1WW models.
Note: It is highly recommended to engage a Lenovo representative in the project that includes the ThinkAgile HX HyperConverged System.
The following table lists the base CTO models.
Comparison with the ThinkSystem SR650 V4
The ThinkAgile HX650 V4 systems are based on the ThinkSystem SR650 V4 server, however there are key differences:
- No onboard SATA controller support
- RAID adapter support for Boot only
- No VROC RAID support
- No mid-chassis drive bay support
- Encryption not supported on SED drives
- Fibre Channel support for data migration only
- No InfiniBand support
For details about the ThinkSystem SR650 V4, see the SR650 V4 product guide:
https://lenovopress.com/lp1601-thinksystem-sr650-v3-server
To verify what specific hardware components are supported with the HX650 V4, see the DCSC configurator:
https://dcsc.lenovo.com
Processors
The ThinkAgile HX650 V4 supports processors 6th Gen Intel Xeon Scalable Processor family.
Topics in this section:
6th Gen Intel Xeon Scalable processors
The HX650 V4 systems support the following processors. The systems support 1 or 2 processors installed.
For details about these options, including configuration rules, see the SR650 V4 product guide:
https://lenovopress.lenovo.com/lp2127-thinksystem-sr650-v4-server#processors
Support for additional processors: The table below lists the processors supported across all configurations. Additional processors may also be supported. Please contact your Lenovo representative regarding the support of additional options through our Special Bid ordering process.
Configuration notes:
- HX650 V4 supports 2 processors
- HX650 V4 Storage support 1 or 2 processors
Lenovo Processor Neptune Core Module - Open-loop liquid cooling
The HX650 V4 also supports advanced direct-water cooling (DWC) capability with the Lenovo Processor Neptune Core Module. This module implements a liquid cooling solution where heat from the processors is removed from the rack and the data center using an open loop and coolant distribution units.
With the Processor Neptune Core Module, all heat generated by the processors is removed from the server using water. This means that the server fans and data center air conditioning units only need to remove the heat generated by the other components. This results in lower air conditioning costs and it enables the use of slower fans which results in lower overall power consumption.
Internal testing has shows a 63% fan power saving per node and 24.7% rack-level power saving with the use of open-loop liquid cooling. Power savings are configuration dependent.
The following figure shows the Lenovo Processor Neptune Core Module.
Figure 5. Lenovo Processor Neptune Core Module
The Processor Neptune Core Module also includes a leak detection module which can detect a leakage of more than 0.5ml (about 10 drops) along the length of the tube and then issue an event to the XClarity Controller. XCC will then post an error to the System Event Log and enable further actions. Once the liquid evaporates, a further event is issue to XCC.
The Processor Neptune Core Module is only available in CTO orders, not as a field upgrade. Ordering information is listed in the following table.
Part number | Feature code | Description |
---|---|---|
CTO only | C1XH* | ThinkSystem V4 1U/2U Processor Neptune Core Module |
* In DCSC, this feature code is listed in the Processor tab
Configuration notes:
- The Processor Neptune Core Module requires water infrastructure be available in the rack cabinet and data center, as described in the Water infrastructure section.
- All processor SKUs are supported
- Either one or two CPUs are supported
- All front drive bay configurations are supported
- Slot 8 is not available for adapters - the water loop is routed through the space otherwise occupied by slot 8
- Rear drive bays are supported
- M.2 adapters are supported based on the configurations in the Storage configurations section
- Standard fans can be configured in most configurations
- The use of a cable management arm (CMA) is not supported
For more information, see the Thermal Rules page:
https://pubs.lenovo.com/sr650-v4/thermal_rules
Memory
6th Generation Memory options
The HX650 V4 systems support the following 6th generation memory options. The HX650 V4 uses Lenovo TruDDR5 memory operating at up to 6400 MHz. The server supports up to 32 DIMMs with 2 processors. The processors have 8 memory channels and support 2 DIMMs per channel (DPC). The server supports up to 8TB of memory using 32x 256GB RDIMMs and two processors.
DIMMs operate at the following speeds, up to the memory bus speed of the processor selected. See the Processor features section for specifics.
- RDIMMs and 3DS RDIMMs:
- 1 DIMM per channel: Up to 6400 MHz
- 2 DIMMs per channel using RDIMMs: Up to 5200 MHz
For details about these options, including configuration rules, see the SR650 V4 product guide:
https://lenovopress.lenovo.com/lp2127-thinksystem-sr650-v4-server#memory
Internal storage
The HX650 V4 has two drive bay zones and supports up to 12x 3.5-inch or 24x 2.5-inch hot-swap drive bays or a combination of drive bays, depending on the selected chassis and backplane configuration.
The two drive bay zones are as follows:
- Front:
- Up to 12x 3.5-inch hot-swap bays, or
- Up to 24x 2.5-inch hot-swap bays,
- Rear:
- Up to 4x 2.5-inch hot-swap bays (storage model only)
All drives are hot-swap and are accessible from the front, from the rear.
The server also supports two M.2 drives,:
- Installed in an M.2 adapter internal to the server (non-hot-swap)
For details about NVMe drives see the the SR650 V4 product guide: https://lenovopress.lenovo.com/lp1601-thinksystem-sr650-v3-server#nvme-drive-support
For details about these options, including configuration rules, see the SR650 V4 product guide:
https://lenovopress.lenovo.com/lp2127-thinksystem-sr650-v4-server#internal-storage
Configuration rules
Configuration rules are as follows:
- Nutanix does not use the concept of "cache" drives but rather uses tiers. There are three tiers currently supported
- NVMe
- HDD tier - requires NVMe
- HX Systems can be configured as:
- NVMe only
- NVMe+HDD
- All drives in a tier must be of the same capacity.
- For All Flash configurations, the system supports from 4 to 24 NVMe
- All SSDs in the system must be of the same model and capacity. All HDDs in the system must be of the same type and capacity
- For boot, 2 drives are required and are used in RAID 1.
- Currently the max number of 2.5-inch drive slots is 24 when configuring a solution.
Backplanes
The choice of backplanes supported varies by system, as listed in the following table.
For details about these options, including configuration rules, see the SR650 V4 product guide:
https://lenovopress.lenovo.com/lp2127-thinksystem-sr650-v4-server#internal-storage
Boot drive enablement
For OS boot functions, the systems also supports two M.2 drives installed on an adapter internal to the server. The following table lists the supported controllers/enablement kits for M.2 boot drives.
For details about these options, including configuration rules, see the SR650 V4 product guide:
https://lenovopress.lenovo.com/lp2127-thinksystem-sr650-v4-server#internal-storage
Controllers for internal storage
The HX650 V4 support the following internal storage controllers.
For details about these options, including configuration rules, see the SR650 V4 product guide:
https://lenovopress.lenovo.com/lp2127-thinksystem-sr650-v4-server#controllers-for-internal-storage
Internal drive options
The following table lists the supported drive options for the HX650 V4.
Configuration Note:
- HDDs over 20TB are only for use with Nutanix Unified Storage (NUS)
Network adapters
The HX650 V4 systems support the following networking options.
For details about these options, including configuration rules, see the SR650 V4 product guide:
https://lenovopress.lenovo.com/lp2127-thinksystem-sr650-v4-server#i-o-expansion
https://lenovopress.lenovo.com/lp2127-thinksystem-sr650-v4-server#network-adapters
Mixing vendors is not supported: HX configurations only support network adapters from one vendor. For example, if you select a Broadcom OCP adapter, you cannot select a Mellanox PCIe network adapter.
Note: ThinkSystem Mellanox ConnectX-6 PCIe is the only adapter enabled for RDMA, minimum required quantity is two.
GPU adapters
The HX650 V4 systems support the following GPU options.
For details about these options, including configuration rules, see the SR650 V4 product guide:
https://lenovopress.lenovo.com/lp2127-thinksystem-sr650-v4-server#gpu-adapters
To ensure that the controlled GPUs and accelerators are only sold in the supported markets, the following configure-to-order base machine-type models (CTO MTMs) are selectable in DCSC:
- Standard Open models are available in all markets worldwide. Controlled GPUs cannot be configured using these models. These are CTO1WW models.
Note: It is highly recommended to engage a Lenovo representative in the project that includes the ThinkAgile HX HyperConverged System.
Configuration Note:
- Some GPUs are only available with VMware ESXi selected as the hypervisor
- A2 support in AHV is planned for AOS 6.9
- The HX650 V3 Storage Integrated System and Certified Node do not support GPUs.
- 1 NVMe backplane is valid for use with 2 or more GPUs installed in the system
Software
The systems support the hypervisors listed in the following table. Hypervisors are installed on the 2x M.2 SSDs configured in a RAID-1 drive group.
Configuration notes:
- In ESXi-based environments, ThinkAgile HX Hyperconverged Solutions require VMware vCenter Server.
- The ThinkAgile HX Hyperconverged Solutions support firmware updates from Nutanix with the ThinkAgile HX Lifecycle Manager (UEFI, XCC2, drives, and network adapters)
Nutanix licenses: The ThinkAgile HX650 V4 ships with the Nutanix software preloaded, software licenses are optional and are recommended to be purchased from Lenovo for a more seamless experience. Customers can use the existing Nutanix term-based software licenses and active support contracts, or they can purchase term-based software licenses and support contracts from Nutanix.
For the information on ThinkAgile HX Hyperconverged Solution firmware levels, hypervisor versions, and software versions that have been tested for interoperability, refer to the Lenovo ThinkAgile HX Series Best Recipes:
http://datacentersupport.lenovo.com/us/en/solutions/ht505413
Nutanix Portfolio 2.0 (PnP) Licensing Model
Nutanix is introducing an enterprise-ready unified cloud platform with our HCI solution as the foundation. The new, simplified product portfolio includes: Nutanix Cloud Platform (NCP), Nutanix Cloud Infrastructure (NCI) and Nutanix Cloud Manager (NCM), NCI-Data with 3 license tiers for each software edition. There are additional packages, Nutanix Unified Storage, Nutanix Database Service (NDB), and Nutanix Desktop Services (NDS), Virtual Desktop Infrastructure (VDI) & Nutanix Frame that are available.
The Nutanix software is available for all base CTO models.
The editions have the following characteristics:
Nutanix Cloud Platform (NCP)
Nutanix Cloud Platform is the complete software edition package that includes both Nutanix Cloud Infrastructure (NCI) and Nutanix Cloud Manager (NCM). It is available in several editions to meet your infrastructure needs with the right set of capabilities.
Nutanix Cloud Infrastructure (NCI)
Nutanix Cloud Infrastructure (NCI) is a complete software stack to unify your hybrid cloud infrastructure including compute, storage and network, hypervisors and containers, in public or enterprise clouds; all with built-in resilience, self-healing, disaster recovery capabilities, and security. It includes enterprise data services and consolidated storage, data protection and disaster recovery, native virtualization and container management, networking and security.
For details on software editions see https://www.nutanix.com/products/cloud-platform/software-options#nci
Nutanix Cloud Manager (NCM)
Nutanix Cloud Manager (NCM) offers our customers simplicity and ease of use to build and grow their cloud deployments faster and realize rapid ROI, by providing intelligent operations, self service and orchestration, visibility and governance of spend, security and teams, all through a unified Multi-cloud management solution.
For details on software editions see https://www.nutanix.com/products/cloud-platform/software-options#ncm
Nutanix Unified Storage
Nutanix Unified Storage provides software-defined, scale-out storage solutions for enterprise NAS and object workloads for unstructured data, block storage for structured data, and backup storage. Nutanix Unified Storage replaces traditional independent storage services and brings NAS, object, and block workloads into a consolidated unified storage platform with all its benefits, including a unified control plane.
Nutanix Data Lens delivers cloud-based data governance for unstructured data stored in the Nutanix Unified Storage platform, including data lifecycle management, data security, ransomware protection, and audit compliance.
Nutanix Unified Storage and Data Lens are purchased and licensed on a per TiB usable basis.
For details on software editions see https://www.nutanix.com/products/cloud-platform/software-options#nus
Nutanix Database Service
Nutanix Database Service (NDB) is a Hybrid Multicloud DBaaS that enables small, nimble teams of DBAs to easily manage large fleets of databases using a single console and API, while enabling developers to self-service their database requests. NDB is purchased and licensed on a per core basis and is available either as a standalone or as an add-on to NCI. In the standalone version, NDB includes NCI Ultimate functionality in addition to database-specific capabilities and is licensed on a per-core basis.
For details on software editions see https://www.nutanix.com/products/cloud-platform/software-options#database
Nutanix Virtual Desktop Infrastructure (VDI) & Nutanix Frame
The Nutanix VDI per user model offers hybrid cloud infrastructure capabilities appropriate for on-prem virtual desktop infrastructure (VDI) and Desktop as a Service (DaaS) use cases with pricing based on a Maximum Concurrent User basis (maximum number of provisioned end-user VMs). VDI per user is an alternative to the core-based NCI licensing option and is designed to provide simple, transparent licensing for all VDI users, regardless of the underlying hardware, hypervisor, or cloud.
- Agnostic: Works with any EUC management platform including Citrix Virtual Apps & Desktops and VMware Horizon
- Term license: 1-year through 5-year options
- Term license must run on a dedicated software licensed VDI cluster with no core-based licensing. Mixing of non-VDI workloads is not supported.
- Unified Storage: Built-in and also available as a per TiB base add-on
- No additional license cost for DR site
- Portable across on-premises and public cloud, public cloud use requires Ultimate edition
- Available in Starter, Pro, and Ultimate editions
- Cloud Native and Database Service Add-ons not available with NCI VDI. Advanced Replication and Security Add-on features require NCI Ultimate edition
For details on software editions see https://www.nutanix.com/products/cloud-platform/software-options#vdi
License Options
ThinkAgile HX can be configured with one of the latest Nutanix software editions that are listed in the following table.
Warranty and Support
The ThinkAgile HX650 V4 can be configured with a three-, four, or five-year hardware warranty with 24x7 ThinkAgile Premier Single Point of Support (Lenovo appliance hardware and Nutanix software) and various levels of coverage with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions.
The Lenovo local support centers perform problem determination and resolution for hardware-related issues and escalate to Nutanix, on behalf of the customer, for software-related problem determination. Nutanix will contact the customer and will own the software-related problem resolution until closure.
For more information refer to the Lenovo Support Plan - ThinkAgile HX Series
https://datacentersupport.lenovo.com/us/en/solutions/ht505404
The base warranty provides 9x5 Next Business Day response with parts delivered. Lenovo’s additional support services provide a sophisticated, unified support structure for a customer's data center, with an experience consistently ranked number one in customer satisfaction worldwide.
Hardware warranty
The ThinkAgile HX650 V4 systems have a 3-year warranty:
- 7DG4 - 2U System - 3 year warranty
Our global network of regional support centers offers consistent, local-language support enabling you to vary response times and level of service to match the criticality of your support needs:
- Standard Next Business Day – Best choice for non-essential systems requiring simple maintenance.
- Premier Next Business Day – Best choice for essential systems requiring technical expertise from senior-level Lenovo engineers.
- Premier 24x7 4-Hour Response – Best choice for systems where maximum uptime is critical.
- Premier Enhanced Storage Support 24x7 4-Hour Response – Best choice for storage systems where maximum uptime is critical.
For more information, consult the brochure Lenovo Operational Support Services for Data Centers Services.
Deployment services
The following optional Lenovo Professional Services are available to get customers up and running quickly.
- Basic Hardware Installation Services
- Unpacking and inspecting the systems
- Installing options and mounting the systems in a rack cabinet
- Connecting the systems to electrical power and network
- Checking and updating firmware to the latest levels
- Verifying operations
- Disposal of the packaging materials (within the customer site)
- Nutanix deployment services - Base (per node)
- Conducting remote preparation and planning
- Verifying firmware versions and performing firmware updates, if needed
- Installing and configuring hypervisor and Nutanix controller VM
- Creating Nutanix cluster
- Configuring storage
- Configuring administrative features
- Nutanix deployment services - Advanced (per cluster)
- Configuring and integrating a virtualized environment
- Nutanix containers and Acropolis (AHV) cluster
- VMware vCenter Server and vSphere cluster (for VMware installations)
- Transferring knowledge
- Configuring and integrating a virtualized environment
- Nutanix deployment services - Advanced with XClarity (per cluster)
- Nutanix deployment services - Advanced
- Installing Lenovo XClarity
- Configuring Lenovo XClarity network settings and performing discovery and inventory
- Installing system updates
The following table lists ThinkAgile Health Check & Deployment offerings are available for ThinkAgile HX customers. These offerings are performed by Lenovo Professional Services.
- Onsite Deployment: Install, configure, and validate solution on-site, and conduct knowledge transfer.
- Remote Deployment: Install, configure, and validate solution remotely, and conduct knowledge transfer.
- Remote Health Check: Report & remediation of hardware and cluster health issues, including firmware and software updates.
Note: For custom Hardware Installation and Deployment Services, please contact the Lenovo Professional Services team for sizing and pricing.
For more information, refer to the Data Center Implementation Services web page:
https://www.lenovo.com/us/en/data-center/services/implementation-services/
Lenovo TruScale
Lenovo TruScale XaaS is your set of flexible IT services that makes everything easier. Streamline IT procurement, simplify infrastructure and device management, and pay only for what you use – so your business is free to grow and go anywhere.
Lenovo TruScale is the unified solution that gives you simplified access to:
- The industry’s broadest portfolio – from pocket to cloud – all delivered as a service
- A single-contract framework for full visibility and accountability
- The global scale to rapidly and securely build teams from anywhere
- Flexible fixed and metered pay-as-you-go models with minimal upfront cost
- The growth-driving combination of hardware, software, infrastructure, and solutions – all from one single provider with one point of accountability.
For information about Lenovo TruScale offerings that are available in your region, contact your local Lenovo sales representative or business partner.
Lenovo Financial Services
Why wait to obtain the technology you need now? No payments for 90 days and predictable, low monthly payments make it easy to budget for your Lenovo solution.
- Flexible
Our in-depth knowledge of the products, services and various market segments allows us to offer greater flexibility in structures, documentation and end of lease options.
- 100% Solution Financing
Financing your entire solution including hardware, software, and services, ensures more predictability in your project planning with fixed, manageable payments and low monthly payments.
- Device as a Service (DaaS)
Leverage latest technology to advance your business. Customized solutions aligned to your needs. Flexibility to add equipment to support growth. Protect your technology with Lenovo's Premier Support service.
- 24/7 Asset management
Manage your financed solutions with electronic access to your lease documents, payment histories, invoices and asset information.
- Fair Market Value (FMV) and $1 Purchase Option Leases
Maximize your purchasing power with our lowest cost option. An FMV lease offers lower monthly payments than loans or lease-to-own financing. Think of an FMV lease as a rental. You have the flexibility at the end of the lease term to return the equipment, continue leasing it, or purchase it for the fair market value. In a $1 Out Purchase Option lease, you own the equipment. It is a good option when you are confident you will use the equipment for an extended period beyond the finance term. Both lease types have merits depending on your needs. We can help you determine which option will best meet your technological and budgetary goals.
Ask your Lenovo Financial Services representative about this promotion and how to submit a credit application. For the majority of credit applicants, we have enough information to deliver an instant decision and send a notification within minutes.
Seller training courses
The following sales training courses are offered for employees and partners (login required). Courses are listed in date order.
-
Lenovo Data Center Product Portfolio
2025-06-11 | 20 minutes | Employees and Partners
DetailsLenovo Data Center Product PortfolioThis course introduces the Lenovo data center portfolio, and covers servers, storage, storage networking, and software-defined infrastructure products. After completing this course about Lenovo data center products, you will be able to identify product types within each data center family, describe Lenovo innovations that this product family or category uses, and recognize when a specific product should be selected.
Published: 2025-06-11
Course objectives:
1.Identify product types within each data center family
2.Describe the features of the product family or category
3.Recognize when a specific product should be selected
Tags: Advanced DataCenter, DataCenter Products, Server, ThinkAgile, ThinkEdge, ThinkSystem
Length: 20 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
VTT: Nutanix Integration in XClarity One - SAM - May 2025
2025-06-10 | 56 minutes | Employees Only
DetailsVTT: Nutanix Integration in XClarity One - SAM - May 2025Please join this session as our speaker Sorin Tacu, will be sharing us a preview of SAM (Solutions Advanced Manager) - a powerful new tool developed by the ThinkAgile HX team in collaboration with XClarity One. Designed to seamlessly integrate the Nutanix Solution into XClarity One, SAM is set to streamline solution management and drive greater value for our customers. Get a first look at its future capabilities and learn more about it.
Published: 2025-06-10
Tags: Nutanix, XClarity
Length: 56 minutesStart the training:
Employee link: Grow@Lenovo -
Partner Technical Webinar - ThinkAgile V4
2025-06-09 | 60 minutes | Employees and Partners
DetailsPartner Technical Webinar - ThinkAgile V4In this 60-minute replay, Pawan Misra, Lenovo SDI Product Manager and Adam Mandelbloom, Lenovo SDI Technical Marketing Manager, reviewed the newly announced ThinkAgile V4 systems for HX, VX and MX.
Published: 2025-06-09
Tags: Microsoft, Nutanix, VMware
Length: 60 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Family Portfolio: ThinkAgile Systems
2025-04-30 | 45 minutes | Employees and Partners
DetailsFamily Portfolio: ThinkAgile SystemsThis course covers the foundational components of the ThinkAgile family, including server configurations, key system differences, and the unique features of the HX, MX, and VX product families.
Published: 2025-04-30
By the end of this course, you should be able to:
•List the ThinkSystem and ThinkEdge servers that the ThinkAgile family is based on
•Explain the difference between Certified Nodes and Integrated Systems
•List two features each of the HX, MX, and VX families
Tags: ThinkAgile, ThinkSystem
Length: 45 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Partner Technical Webinar - Storage Announcements
2025-04-29 | 60 minutes | Employees and Partners
DetailsPartner Technical Webinar - Storage AnnouncementsIn this 60-minute replay, the April 23 Storage Announcement was presented. Adam Mandelbloom, Lenovo Technical Marketing Manager, presented the ThinkAgile announcements. Next, Roger Yarosh, Senior Storage Product Manager, presented the DG and DM announcements.
Published: 2025-04-29
Tags: Data Management, ThinkAgile
Length: 60 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Think AI Weekly: Simplifying AI Deployments with ThinkAgile
2025-04-11 | 54 minutes | Employees Only
DetailsThink AI Weekly: Simplifying AI Deployments with ThinkAgilePlease view this session to hear Adam Mandelbloom, Technical Marketing Manager for ISG explain these topics:
Published: 2025-04-11
-Overall value proposition of ThinkAgile in AI solutions
-Use cases for ThinkAgile HX
-Use cases for ThinkAgile VX and MX
Tags: Artificial Intelligence (AI), ThinkAgile
Length: 54 minutesStart the training:
Employee link: Grow@Lenovo -
Lenovo TruScale for Hosted Desktops with Nutanix
2025-02-04 | 15 minutes | Employees and Partners
DetailsLenovo TruScale for Hosted Desktops with NutanixBy exemplifying the case of a customer who wants to move to a remote desktop public cloud solution, this 15-minute course offers an overview of the Lenovo TruScale for Hosted Desktops with Nutanix solution, including benefits, architecture, and value proposition.
Published: 2025-02-04
After completing this course, you will be able to describe the Lenovo TruScale for Hosted Desktops with Nutanix solution, articulate the value proposition of this Hosted Desktops solution, and identify opportunities for this Lenovo-Nutanix solution.
Tags: ThinkAgile, TruScale
Length: 15 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Selling On Prem Value - Private Cloud and Private AI
2024-12-13 | 40 minutes | Employees Only
DetailsSelling On Prem Value - Private Cloud and Private AIThis course provides Lenovo Sellers with a series of five videos that are designed to help you better articulate our joint value in the Private Cloud and Private AI solution opportunity. After completing this course, Lenovo Sellers should be prepared to elevate customer discussions by transitioning from product features to explaining value-driven benefits, enabling a deeper understanding of the strategic impact for their business.
Published: 2024-12-13
Tags: Artificial Intelligence (AI), Industry solutions, Technology solutions, ThinkAgile, VMware
Length: 40 minutesStart the training:
Employee link: Grow@Lenovo -
Partner Technical Webinar - Data Center 101 - Why HCI? Why 3-tier?
2024-11-14 | 60 minutes | Employees and Partners
DetailsPartner Technical Webinar - Data Center 101 - Why HCI? Why 3-tier?October 11, 2024 – In this 60-minute webinar Alex Docherty, Channel Technical Strategist, discussed When to HCI vs 3 Tier.
Published: 2024-11-14
Tags: ThinkAgile, ThinkSystem
Length: 60 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
ThinkAgile Solutions for AI - Security and Compliance Considerations
2024-10-01 | 15 minutes | Employees and Partners
DetailsThinkAgile Solutions for AI - Security and Compliance ConsiderationsThis course, tailored specifically for Lenovo and its partner technical sellers, is designed to equip participants with essential knowledge and skills to effectively assess security measures and address compliance considerations for ThinkAgile Solutions for AI.
Published: 2024-10-01
Upon completion of this training, you will be able to:
• Describee security features of ThinkAgile for AI data protection.
• Explain how to mitigate risk and address compliance considerations in AI deployments.
Last Updated: September 2024
Tags: Artificial Intelligence (AI), High-Performance Computing (HPC), ThinkAgile
Length: 15 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Integration of ThinkAgile and AI
2024-09-11 | 25 minutes | Employees and Partners
DetailsIntegration of ThinkAgile and AIDesigned specifically for Lenovo and its partner technical sellers, this course aims to equip you with the knowledge and skills to effectively communicate the integration of ThinkAgile Solutions and AI.
Published: 2024-09-11
Upon completion of this training, you will be able to:
•Highlight the advantages of using ThinkAgile for AI workloads
•Explore how ThinkAgile platforms are specifically optimized for AI
Last Updated: September 2024
Tags: Artificial Intelligence (AI), ThinkAgile
Length: 25 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Key Features of Lenovo ThinkAgile Solutions for AI
2024-09-10 | 15 minutes | Employees and Partners
DetailsKey Features of Lenovo ThinkAgile Solutions for AIDesigned specifically for Lenovo and its partner technical sellers, this course aims to equip you with the knowledge and skills to effectively communicate the key features of ThinkAgile Solutions for AI. By completing this course, you'll be better prepared to understand customer needs and present the most suitable AI solutions, ensuring successful engagements and driving value for your clients.
Published: 2024-09-10
In this course, you will learn how to:
• Present compute capabilities for AI processing
• Articulate optimized storage solutions with ThinkAgile for high-speed AI performance
• Identify essential networking considerations for ThinkAgile AI workloads
• Present ThinkAgile AI Ready solutions
Last Updated: September 2024
Tags: Artificial Intelligence (AI), ThinkAgile
Length: 15 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
ThinkAgile Solutions for AI - Sales Strategies and Messaging
2024-09-06 | 15 minutes | Employees and Partners
DetailsThinkAgile Solutions for AI - Sales Strategies and MessagingThis course is designed exclusively for Lenovo and its partner technical sales teams, with the goal of empowering you with the knowledge and strategies necessary to effectively engage customers in conversations about ThinkAgile Solutions for AI.
Published: 2024-09-06
In this course, you'll learn how to:
• Identify customer pain points.
• Recommend ThinkAgile Solutions for AI tailored to those needs. And lastly,
• Communicate the benefits of ThinkAgile for AI to key stakeholders.
Last Updated: September 2024
Tags: Artificial Intelligence (AI), ThinkAgile
Length: 15 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Position Lenovo ThinkAgile Solutions for AI
2024-08-19 | 10 minutes | Employees and Partners
DetailsPosition Lenovo ThinkAgile Solutions for AIDesigned specifically for Lenovo and partner technical sellers, this course aims to equip you with the knowledge and skills necessary to effectively evaluate and position ThinkAgile Solutions for AI to your customers. By completing this course, you will be better prepared to understand customer needs and present the most suitable AI solutions, ensuring successful engagements and driving value for your clients.
Published: 2024-08-19
In this course, you will learn how to position ThinkAgile Solutions for AI to your customers by:
•Evaluating the key challenges in the enterprise landscape
•Advocating the value proposition of ThinkAgile Hyper-Converged Infrastructure
•Exploring use cases of ThinkAgile in AI environments
•Implementing ThinkAgile-based AI deployments
Tags: Artificial Intelligence (AI), ThinkAgile
Length: 10 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
ThinkAgile Roadshow for Account Managers
2024-06-21 | 60 minutes | Employees Only
DetailsThinkAgile Roadshow for Account ManagersAs customers transition through technology refresh and modernize their IT, learn how to win and position ThinkAgile portfolio. Get an overview of current ThinkAgile momentum and strategy along with best practices in product positioning
Published: 2024-06-21
Tags: Artificial Intelligence (AI), Cloud, Microsoft, Nutanix, ThinkAgile, VMware
Length: 60 minutesStart the training:
Employee link: Grow@Lenovo -
SAP Webinar for Lenovo Sellers: Lenovo Portfolio Update for SAP Landscapes
2024-06-04 | 60 minutes | Employees Only
DetailsSAP Webinar for Lenovo Sellers: Lenovo Portfolio Update for SAP LandscapesJoin Mark Kelly, Advisory IT Architect with the Lenovo Global SAP Center of Competence as he discusses:
Published: 2024-06-04
•Challenges in the SAP environment
•Lenovo On-premise Solutions for SAP
•Lenovo support resources for SAP solutions
Tags: SAP, ThinkAgile, ThinkEdge, ThinkSystem
Length: 60 minutesStart the training:
Employee link: Grow@Lenovo -
VTT Cloud Architecture: NVIDIA Using Cloud for GPUs and AI
2024-05-22 | 60 minutes | Employees Only
DetailsVTT Cloud Architecture: NVIDIA Using Cloud for GPUs and AIJoin JD Dupont, NVIDIA Head of Americas Sales, Lenovo partnership and Veer Mehta, NVIDIA Solution Architect on an interactive discussion about cloud to edge, designing cloud Solutions with NVIDIA GPUs and minimizing private\hybrid cloud OPEX with GPUs. Discover how you can use what is done at big public cloud providers for your customers. We will also walk through use cases and see a demo you can use to help your customers.
Published: 2024-05-22
Tags: Artificial Intelligence (AI), Cloud, Nvidia, Software Defined Infrastruture (SDI), Technical Sales
Length: 60 minutesStart the training:
Employee link: Grow@Lenovo -
Start the Conversation - Lenovo Cloud Strategy
2024-05-20 | 25 minutes | Employees and Partners
DetailsStart the Conversation - Lenovo Cloud StrategyThe purpose of this course is to help sellers use the Lenovo cloud strategy as a foundation to start the customer cloud conversation.
Published: 2024-05-20
Course Objectives:
•Understand why customers choose the cloud
•Describe the Lenovo Cloud Strategy
•Be able to start the customer cloud conversation
Tags: Cloud, Technology solutions
Length: 25 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
VTT Cloud and Edge Architecture: Principal Consultant Overview
2024-04-10 | 50 minutes | Employees Only
DetailsVTT Cloud and Edge Architecture: Principal Consultant OverviewJoin Ruth Miller, Lenovo Principal Consultant, SSG Services for a data-led discussions to examine in detail customer IT environments, highlighting pain points, performance issues, edge and hybrid cloud strategy and carbon reduction capability.
Published: 2024-04-10
Examples of workshop deliverables and outcomes will be discussed to illustrate the value of early engagement and discovery.
Tags: Cloud, Services, Sustainability, Technology solutions, TruScale Infrastructure as a Service
Length: 50 minutesStart the training:
Employee link: Grow@Lenovo -
VTT Data Management How to sell storage - April 2024
2024-04-10 | 60 minutes | Employees and Partners
DetailsVTT Data Management How to sell storage - April 2024In this course, you will know:
Published: 2024-04-10
- Why do we sell storage?
- What are the basics you need to get an opportunity rolling?
- Why Lenovo for Storage?
- What is happening in the market today?
- How to determine traction?
Tags: Data Management, Storage
Length: 60 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Technical Overview: ThinkAgile HCI and Cloud Platforms
2024-03-07 | 35 minutes | Employees and Partners
DetailsTechnical Overview: ThinkAgile HCI and Cloud PlatformsThis course is designed to give Lenovo sales and partner representatives a technical overview of Lenovo’s ThinkAgile hyperconverged infrastructure and cloud platforms. Turnkey cloud platforms along with their architectural makeup, and container and data protection solutions are also covered.
Published: 2024-03-07
Learning Objectives:
•Describe Lenovo’s ThinkAgile hyperconverged infrastructure and cloud platforms
•Explain do-it-yourself and turnkey cloud platforms along with their architectural makeup
•Describe container and data protection solutions
Tags: Architecture, Engineering & Construction, Cloud, Technical Sales, ThinkAgile
Length: 35 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Lenovo HX Business Conversations
2024-03-06 | 20 minutes | Employees and Partners
DetailsLenovo HX Business ConversationsThis course covers business conversations for Lenovo HX Hyperconverged solutions.
Published: 2024-03-06
Course objectives:
•Identify a potential Lenovo HX opportunity
•Conduct effective discovery to reveal the customer’s data center needs
•Probe the customer
•Ensure the customer knows you understand their issue(s)
Tags: DataCenter Products, Nutanix, Storage
Length: 20 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Family Introduction: Converged and Hyperconverged
2024-01-25 | 15 minutes | Employees and Partners
DetailsFamily Introduction: Converged and HyperconvergedThis course is designed to give Lenovo sales a foundation on the characteristics of the Converged and Hyperconverged family. As an introduction to each family, this course also includes positioning, when to use a family and product, and keywords a client may use when discussing a converged or hyperconverged product.
Published: 2024-01-25
Objectives:
•Family characteristics
•Priority positioning
•Product usage
•Key words and phrases
Tags: Sales, Storage
Length: 15 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
The 10-minute Edge conversation for Lenovo Sellers
2023-12-14 | 20 minutes | Employees and Partners
DetailsThe 10-minute Edge conversation for Lenovo SellersThe purpose of this course is to enable sellers to have a 10 to 15-minute customer conversation addressing the relevancy of Edge solutions to the customer business.
Published: 2023-12-14
Learning Objectives:
•Prepare for the initial customer conversation
•Hold a 10-minute Edge Operational Technology (OT) conversation
•Take the appropriate steps to progress the sale
Tags: ThinkEdge
Length: 20 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
VEEAM Solutions Sales Training
2023-09-27 | 20 minutes | Employees and Partners
DetailsVEEAM Solutions Sales TrainingIn this course you will learn about Hyper-availability for the Always-On Enterprise.
Published: 2023-09-27
By the end of this training, you should be able to:
Identify and explain the core products and solutions offered by Veeam.
Explain the key benefits and value propositions of integrating Veeam solutions with Lenovo products.
Tags: Sales
Length: 20 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
A Seller's Guide to Nutanix OEM 2.0
2023-08-24 | 90 minutes | Employees Only
DetailsA Seller's Guide to Nutanix OEM 2.0In this Sales Team webinar, Mike Tilt, Ritu Jain and Brandon Saxton will cover the new Nutanix 2.0 pricing and packaging options to guide sellers on what the different types of offers, sales process and how to sell Nutanix 2.0. You will get an overview of OEM 2.0, Sales Process, PNP Pricing and Zone Information, and additional resources on Upgrade & Renewal SKUs and process.
Published: 2023-08-24
Course Objectives
•Defining Nutanix 2.0 Pricing and Packaging
•Describing OEM 2.0 Sales Process
•Identifying resources and support
Tags: Nutanix, OEM, Sales
Length: 90 minutesStart the training:
Employee link: Grow@Lenovo -
Empowering Technical Sellers: Excelling In Transactional Workloads
2023-08-18 | 60 minutes | Employees and Partners
DetailsEmpowering Technical Sellers: Excelling In Transactional WorkloadsThis training abstract outlines a comprehensive program designed to equip technical sellers with the knowledge and expertise required to effectively promote and sell Lenovo and Nutanix solutions for transactional workloads. By focusing on the unique capabilities and advantages of Lenovo and Nutanix infrastructure in handling high-performance transactional applications, this training program empowers technical sellers to engage with customers, understand their specific workload requirements, and articulate the value proposition of Lenovo and Nutanix offerings in this domain.
Published: 2023-08-18
The training program encompasses the following key areas:
1. Transactional Workloads Overview:
2. Lenovo and Nutanix Solutions for Transactional Workloads:
3. Product Portfolio Deep Dive:
4. Addressing Customer Requirements:
5. Solution Positioning and Sales Techniques:
6. Competitor Analysis:
Through this training, technical sellers will acquire the expertise necessary to engage with customers, understand their transactional workload requirements, and effectively position Lenovo and Nutanix solutions as the ideal choice for high-performance, mission-critical applications. By understanding the intricacies of Lenovo and Nutanix offerings in the transactional workload space, technical sellers will be empowered to drive successful sales engagements, build strong customer relationships, and contribute to the growth and success of their organization.
Tags: Cloud, Nutanix, ThinkAgile
Length: 60 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Empowering Technical Sellers: Accelerating Lenovo and Nutanix Cloud Native-Container Application Solutions
2023-08-18 | 60 minutes | Employees and Partners
DetailsEmpowering Technical Sellers: Accelerating Lenovo and Nutanix Cloud Native-Container Application SolutionsThis training abstract outlines a comprehensive program specifically designed to equip technical sellers with the knowledge and expertise needed to effectively promote and sell Lenovo and Nutanix cloud native/container application solutions. By focusing on the integration of Lenovo and Nutanix technologies with modern application development practices, this training enables tech sellers to engage with customers, understand their requirements, and articulate the unique value proposition of Lenovo and Nutanix offerings in the cloud native and containerization landscape.
Published: 2023-08-18
The training encompasses the following key areas:
1. Cloud Native and Containerization Fundamentals:
2. Lenovo and Nutanix Solutions Overview:
3. Product Portfolio Deep Dive:
4. Addressing Customer Needs:
5. Solution Positioning and Sales Techniques:
6. Competitor Analysis:
7. Technical Demonstration and Proof-of-Concept:
Throughout the training, tech sellers will gain the expertise necessary to engage with customers, understand their unique requirements, and effectively position Lenovo and Nutanix solutions as the go-to choice for cloud native and containerized application needs. By learning the intricacies of Lenovo and Nutanix offerings, technical sellers will be equipped to drive successful sales engagements, strengthen customer relationships, and contribute to the overall growth and success of the organization.
Tags: Business solutions, Cloud, Nutanix, ThinkAgile
Length: 60 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
ThinkAgile Accelerating Cloud Agility: HX Series Technical Presentation
2023-07-28 | 40 minutes | Employees and Partners
DetailsThinkAgile Accelerating Cloud Agility: HX Series Technical PresentationAmalu Santhosh, Lenovo Technical Product Manager, reviews the ThinkAgile HX product portfolio. She will walk you through a technical deep dive into HX workloads and discuss technical details and performance of the latest ThinkAgile HX solutions.
Published: 2023-07-28
Tags: ThinkAgile
Length: 40 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Cloud and HCI or Somewhere in Between
2023-07-11 | 40 minutes | Employees and Partners
DetailsCloud and HCI or Somewhere in BetweenProvides a brief overview of Lenovo Portfolio for HCI and Cloud including ThinkAgile HX, VX, MX Certified Nodes and Appliances, Azure, and Engineered Cloud Solutions. Review Scenarios and complete questions "choose your own adventure" to identify and qualify an opportunity as HCI or Cloud and which portfolio solution would be the best option.
Published: 2023-07-11
Course objectives:
•Where in the Sales Cycle we are
•What is Cloud
•What is Hyperconverged Infrastructure (HCI)
•Review Lenovo Offerings in Cloud and HCI
•Scenarios
Tags: Cloud
Length: 40 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
What's New with Nutanix 2.0? Portfolio and Licensing
2023-06-08 | 15 minutes | Employees and Partners
DetailsWhat's New with Nutanix 2.0? Portfolio and LicensingNutanix has updated and simplified their licensing for our joint customers. This course is created to give sales and partners representatives an overview for the recent Nutanix licensing changes and their current options.
Published: 2023-06-08
Course Objectives:
After completing this course, you should be able to:
• Describe the new Nutanix licensing rollout
• List the new pricing and packaging options
Tags: Cloud, Nutanix, Software Defined Infrastruture (SDI), ThinkAgile
Length: 15 minutesStart the training:
Employee link: Grow@Lenovo
Partner link: Lenovo 360 Learning Center -
Data Infrastructure Management - DM Series Storage
2022-10-28 | 25 minutes | Employees Only
DetailsData Infrastructure Management - DM Series StorageThis course provides a technical overview of the ThinkSystem DM series products. Course DDMO101 – Lenovo ThinkSystem DM & DE Series Overview is recommended prior to this course.
Published: 2022-10-28
By the end of this course, you should be able to:
•Recognize the components of the Lenovo Data Management portfolio
•Discuss the features of the Lenovo Data Management components
•Describe the features of the SnapCenter software components
Tags: Sales, Storage, Technical Sales, ThinkSystem
Length: 25 minutesStart the training:
Employee link: Grow@Lenovo
1-10 of 32 courses.
Related publications and links
For more information, see these resources:
- Lenovo ThinkAgile HX Series
https://www.lenovo.com/us/en/data-center/software-defined-infrastructure/ThinkAgile-HX-Series/p/WMD00000326 -
Interactive 3D Tour of ThinkAgile HX Series offerings:
https://lenovopress.com/lp0454-lenovo-thinkagile-hx-series-interactive-3d-tour - Lenovo Data Center Solution Configurator (DCSC):
http://dcsc.lenovo.com - Lenovo ThinkAgile product publications (user manuals):
https://thinkagile.lenovofiles.com/help/index.jsp - Nutanix documentation
https://my.nutanix.com/ - Lenovo ThinkAgile HX Series Best Recipes
https://support.lenovo.com/us/en/solutions/HT515725 - Lenovo Data Center Support
http://datacentersupport.lenovo.com
Trademarks
Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at https://www.lenovo.com/us/en/legal/copytrade/.
The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo®
AnyBay®
Neptune®
ThinkAgile®
ThinkSystem®
XClarity®
The following terms are trademarks of other companies:
Intel® and Xeon® are trademarks of Intel Corporation or its subsidiaries.
Microsoft® and Hyper-V® are trademarks of Microsoft Corporation in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks of others.
Configure and Buy
Full Change History
Course Detail
Employees Only Content
The content in this document with a is only visible to employees who are logged in. Logon using your Lenovo ITcode and password via Lenovo single-signon (SSO).
The author of the document has determined that this content is classified as Lenovo Internal and should not be normally be made available to people who are not employees or contractors. This includes partners, customers, and competitors. The reasons may vary and you should reach out to the authors of the document for clarification, if needed. Be cautious about sharing this content with others as it may contain sensitive information.
Any visitor to the Lenovo Press web site who is not logged on will not be able to see this employee-only content. This content is excluded from search engine indexes and will not appear in any search results.
For all users, including logged-in employees, this employee-only content does not appear in the PDF version of this document.
This functionality is cookie based. The web site will normally remember your login state between browser sessions, however, if you clear cookies at the end of a session or work in an Incognito/Private browser window, then you will need to log in each time.
If you have any questions about this feature of the Lenovo Press web, please email David Watts at [email protected].
