Lenovo ThinkSystem SC777 V4 Neptune Server

The ThinkSystem SC777 V4 Neptune node is the next-generation high-performance accelerated server based on the sixth generation Lenovo Neptune® direct water cooling platform.

Based on the NVIDIA GB200 NVL4 platform, the ThinkSystem SC777 V4 server combines the latest high-performance NVIDIA GPU and Lenovo's market-leading water-cooling solution, which results in extreme HPC/AI performance in dense packaging.

The direct water cooled solution is designed to operate by using warm water, up to 45°C (113°F). Chillers are not needed for most customers, meaning even greater savings and a lower total cost of ownership. Eight servers are housed in the ThinkSystem N1380 enclosure, a 13U rack mount unit that fits in a standard 19-inch rack.

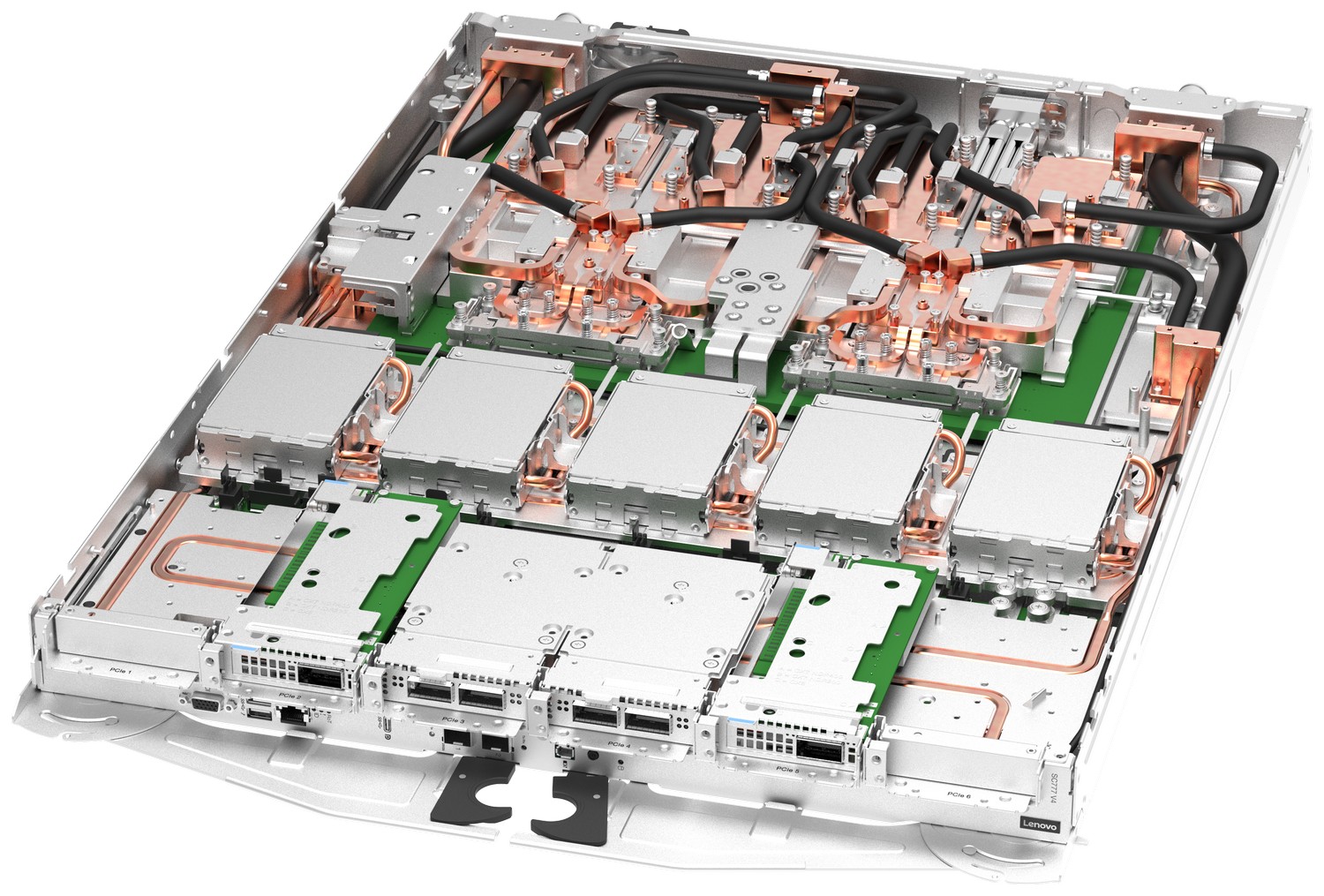

Figure 1. The Lenovo ThinkSystem SC777 V4 Neptune Server (AI Training configuration)

Lenovo Neptune and the ThinkSystem SC777 V4 are designed to operate at water inlet temperatures as low as the dew point allows, up to 45°C. This design eliminates the need for additional chilling and allows for efficient reuse of the generated heat energy in building heating or adsorption cold water generation. It uses treated de-ionized water as a coolant, a much safer and more efficient alternative to the commonly used PG25 Glycol liquid, reflecting our commitment to environmental responsibility.

The ThinkSystem SC777 V4 server uses a new design, where the servers are mounted vertically in the N1380 enclosure. Eight servers are installed in one 13U N1380 enclosure.

Revolutionary Lenovo Neptune Design

Engineered for large-scale Artificial Intelligence (AI) and High Performance Computing (HPC), Lenovo ThinkSystem SC777 V4 Neptune excels in intensive simulations and complex modeling. It is designed to handle modeling, training, simulation, rendering, financial tech, scientific research, technical computing, grid deployments, and analytics workloads in various fields such as research, life sciences, energy, engineering, and financial simulation.

At its core, Lenovo Neptune applies 100% direct warm-water cooling, maximizing performance and energy efficiency without sacrificing accessibility or serviceability. The SC777 V4 integrates seamlessly into a standard 19" rack cabinet with the ThinkSystem N1380 Neptune enclosure, featuring a patented blind-mate stainless steel dripless quick connection.

This design ensures easy serviceability and extreme performance density, making the SC777 V4 the go-to choice for compute clusters of all sizes - from departmental/workgroup levels to the world’s most powerful supercomputers – from Exascale to Everyscale®.

Lenovo Neptune utilizes superior materials, including custom copper water loops and patented CPU cold plates, for full system water-cooling. Unlike systems that use low-quality FEP plastic, Neptune features durable stainless steel and reliable EPDM hoses. The  N1380 enclosure features an integrated manifold that offers a patented blind-mate mechanism with aerospace-grade drip-less connectors to the compute trays, ensuring safe and seamless operation.

Lenovo’s direct water-cooled solutions are factory-integrated and are re-tested at the rack-level to ensure that a rack can be directly deployed at the customer site. This careful and consistent quality testing has been developed as a result of over a decade of experience designing and deploying DWC solutions to the very highest standards.

Scalability and performance

The ThinkSystem SC777 V4 server and ThinkSystem N1380 enclosure offer the following features to boost performance, improve scalability, and reduce costs:

• The SC777 V4 node leverages the NVIDIA GB200 NVL4 Host Processor Motherboard (HPM) with:
  • Two NVIDIA Grace processors
  • Four NVIDIA Blackwell B200 SXM7 GPU modules
  • Highspeed NVLink interconnects between GPUs
  • 1TB of system memory
• The server has up to 6x PCIe Gen 5 x16 slots for high-speed networking, depending on the configuration.
• The server also supports up to 10x E3.S 1T drive bays, depending on the configuration, for internal storage and OS boot
• All supported drives are E3.S NVMe drives with PCIe Gen 5 x4 host interface, to maximize I/O performance in terms of throughput, bandwidth, and latency.
• The node includes two 25 Gb Ethernet onboard ports for cost effective networking. High speed host networking can be added through the included PCIe slots. One of the 25Gb ports support NC-SI for BMC management communication to the BMC in addition to the host communication.
• The node offers PCI Express 5.0 (PCIe Gen 5) I/O expansion capabilities that doubles the theoretical maximum bandwidth of PCIe Gen 4 (32GT/s in each direction for Gen 5, compared to 16 GT/s with Gen 4). A PCIe Gen 5 x16 slot provides 128 GB/s bandwidth, enough to support a 400GbE network connection. Two Gen 5 x16 connections (32 lanes total) provides the bandwidth needed for an 800 GbE connection using the ConnectX-8 8180 network adapter.

Energy efficiency

The direct water cooled solution offers the following energy efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to a green environment:

• Water cooling eliminates power that is drawn by cooling fans in the enclosure and dramatically reduces the required air movement in the server room, which also saves power. In combination with an Energy Aware Runtime environment, savings as much as 40% are possible in the data center due to the reduced need for air conditioning.
• Water chillers may not be required with a direct water cooled solution. Chillers are a major expense for most geographies and can be reduced or even eliminated because the water temperature can now be 45°C instead of 18°C in an air-cooled environment.
• With the new water-cooled power conversion stations and SMM3, essentially 100% system heat recovery is possible, depending on water and ambient temperature chosen. At 45°C water temperature and 30°C room temperature it will be typically around 95% through surface radiated heat. Heat energy absorbed may be reused for heating buildings in the winter, or generating cold through Adsorption Chillers, for further operating expense savings.
• The processors and other microelectronics are run at lower temperatures because they are water cooled, which uses less power, and allows for higher performance through Turbo Mode.
• The processors are run at uniform temperatures because they are cooled in parallel loops, which avoid thermal jitter and provides higher and more reliable performance at same power.
• 80 PLUS Titanium-compliant power conversion stations ensure energy efficiency.
• Power monitoring and management capabilities through the System Management Module in the N1380 enclosure.
• The System Management Module (SMM3) automatically calculates the power boundaries at the enclosure level; the protective capping feature ensures overall power consumption stay within limits, adjusting dynamically based on the server and power conversion station status change.
• Lenovo power/energy meter based on TI INA228 measures DC power for the SC777 V4 at higher than 97% accuracy and 100 Hz sampling frequency to the XCC and can be leveraged both in-band and out-of-band using IPMI raw commands.
• Optional Energy Aware Runtime provides sophisticated power monitoring and energy optimization on a job-level during the application runtime without impacting performance negatively.

Manageability and security

The following powerful systems management features simplify local and remote management of the SC777 V4 server:

• The server includes an XClarity Controller 3 (XCC3) to monitor server availability. XCC3 Premier is an included offering to provide remote control (keyboard video mouse) functions, support for the mounting of remote media files, FIPS 140-3 security, enhanced NIST 800-193 support, boot capture, power capping, and other management and security features.
• Lenovo XClarity Administrator offers comprehensive hardware management tools that help to increase uptime, reduce costs, and improve productivity through advanced server management capabilities.
• Support for industry standard management protocols, IPMI 2.0, SNMP 3.0, Redfish REST API, serial console via IPMI
• The SC777 V4 is enabled with Lenovo HPC & AI Software Stack, so, you can support multiple users and scale within a single cluster environment.
• Lenovo HPC & AI Software Stack provides our HPC customers you with a fully tested and supported open-source software stack to enable your administrators and users with for the most effective and environmentally sustainable consumption of Lenovo supercomputing capabilities.
• Our Confluent management system provides an interface designed to abstract the users from the complexity of HPC cluster orchestration and AI workloads management, making open-source HPC software consumable for every customer.
• Integrated Trusted Platform Module (TPM) 2.0 support enables advanced cryptographic functionality, such as digital signatures and remote attestation.
• Supports Secure Boot to ensure only a digitally signed operating system can be used.
• Industry-standard Advanced Encryption Standard (AES) NI support for faster, stronger encryption.
• With the System Management Module (SMM) installed in the enclosure, only one Ethernet connection is needed to provide remote systems management functions for all SC777 V4 servers and the enclosure.
• The SMM3 management module has two Ethernet ports which allows a single Ethernet connection to be daisy chained, up to 99 connections (eg 3 enclosures and 96 servers), thereby significantly reducing the number of Ethernet switch ports needed to manage an entire rack of SC777 V4 servers and N1380 enclosures.
• The N1380 enclosure and its power conversion stations include drip sensors that monitor the inlet and outlet manifold quick connect couplers; leaks are reported via the SMM.

Availability and serviceability

The SC777 V4 node and N1380 enclosure provide the following features to simplify serviceability and increase system uptime:

• Designed to run 24 hours a day, 7 days a week
• With full water cooling, system fans are not required. This results in significantly reduced noise levels on the data center floor, a significant benefit to personnel having to work on site.
• Depending on the configuration and node population, the N1380 enclosure supports N+1 with oversubscription power policy for its power conversion stations, which means greater system uptime.
• Power conversion stations are hot-swappable to minimize downtime.
• Toolless cover removal on the nodes provides easy access to upgrades and serviceable parts, such as adapters and memory.

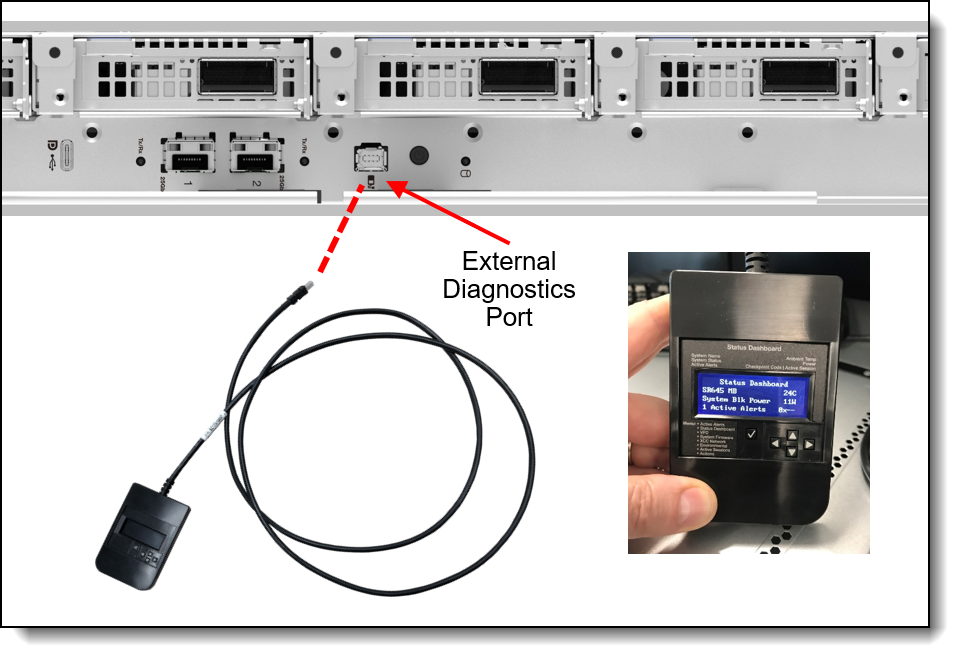

• The XCC offers optional remote management capability and can enable remote keyboard, video, and mouse (KVM) control and remote media for the node.
• Built-in diagnostics in UEFI, using Lenovo XClarity Provisioning Manager, speed up troubleshooting tasks to reduce service time.
• Lenovo XClarity Provisioning Manager supports diagnostics and can save service data to a USB key drive or remote CIFS share folder for troubleshooting and reduce service time.
• Auto restart in the event of a momentary loss of AC power (based on power policy setting in the XClarity Controller service processor)
• Virtual reseat is a supported feature of the System Management Module which, in essence, removes the node from A/C power and reconnecting the node to AC power from a remote location.
• There is a three-year customer replaceable unit and onsite limited warranty, with next business day 9x5 coverage. Optional warranty upgrades and extensions are available.

View the SC777 V4 in augmented reality (AR) using your smartphone or tablet.

Simply follow these steps:

1. Scan the QR code* with the camera app on your phone
2. Point your phone at a flat surface
3. Wait a few seconds for the model to appear

Once the server appears, you can move your phone around it. You can also drag or rotate the server to reposition it.

For more information about the AR viewer, see the article "Introducing the Augmented Reality Viewer for Lenovo Servers", available from https://lenovopress.lenovo.com/lp1952

* If you're viewing this document on your phone or tablet, simply tap the QR code

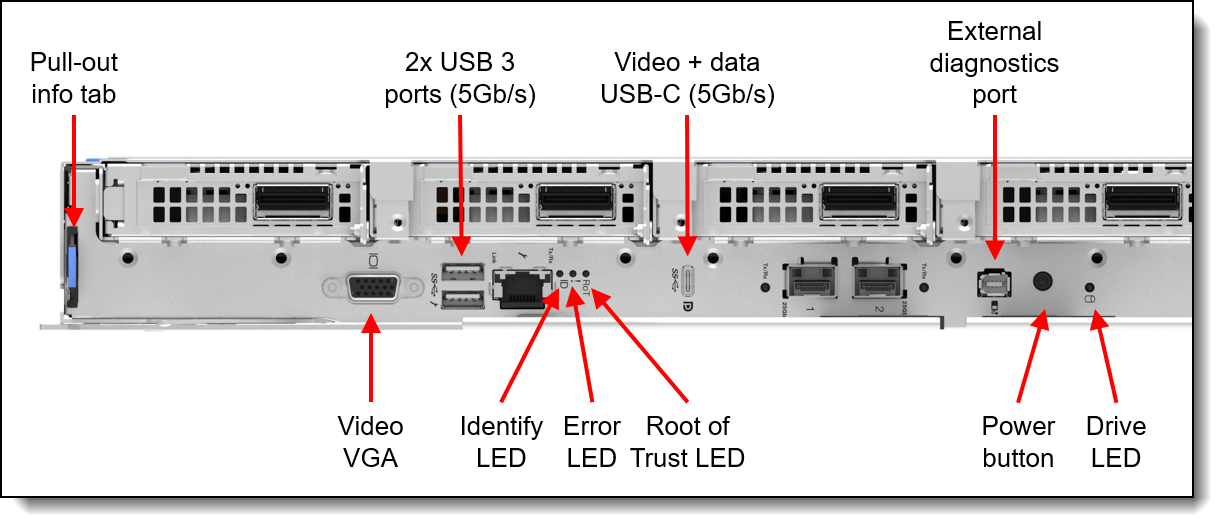

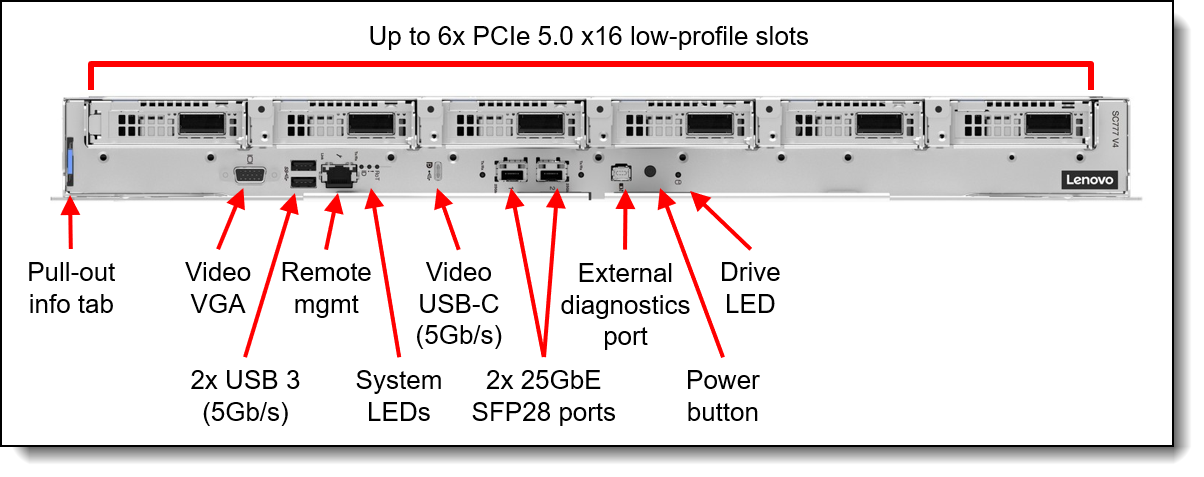

The front of the server is shown in the following figure.

Figure 2. Front view of the ThinkSystem SC777 V4

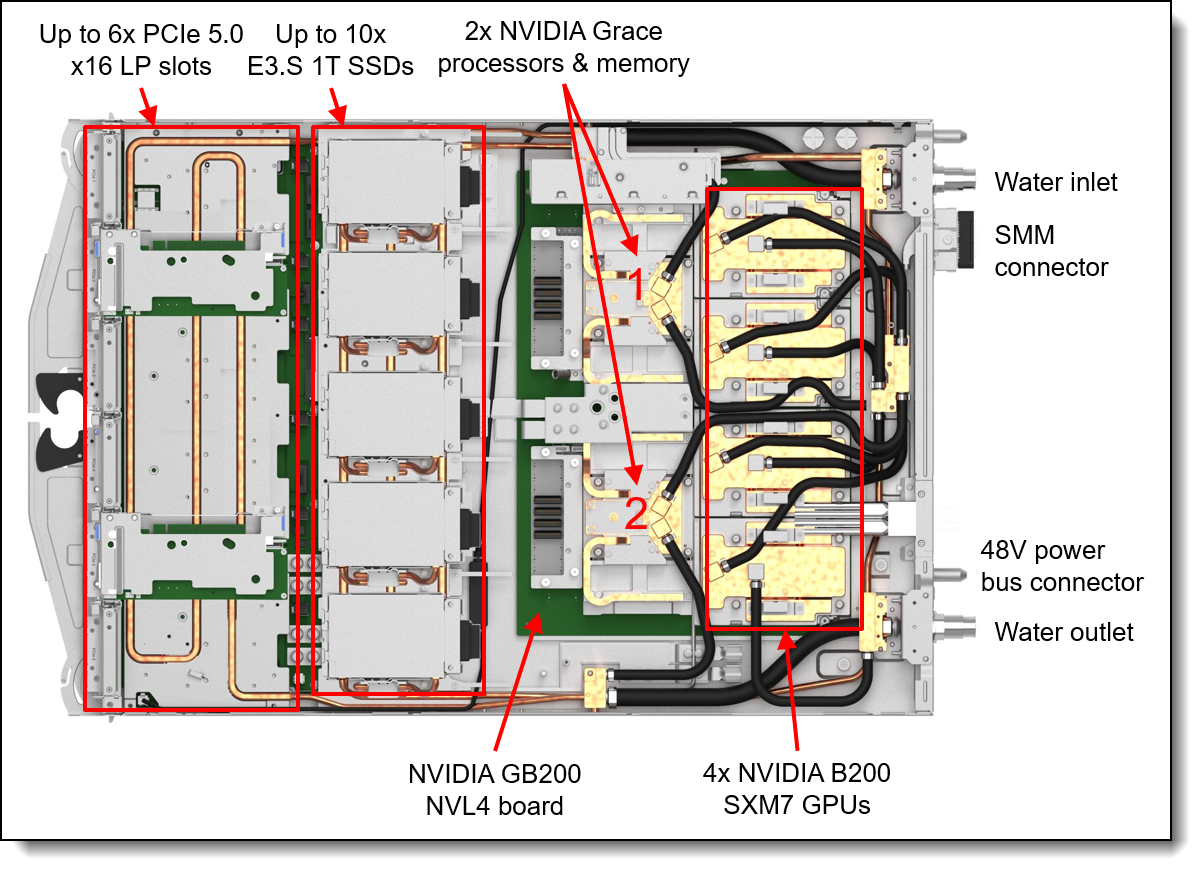

The following figure shows key components internal to the server.

Figure 3. Inside view of the SC777 V4 server in the water-cooled tray

The rear of the N1380 enclosure contains the 4x water-cooled power conversion stations (PCS), water connections, and the System Management Module.

Figure 5. Rear view of the N1380 enclosure (water hoses removed for clarity)

The SC777 V4 is offered in two primary configurations, for AI for Science workloads and for AI Training workloads.

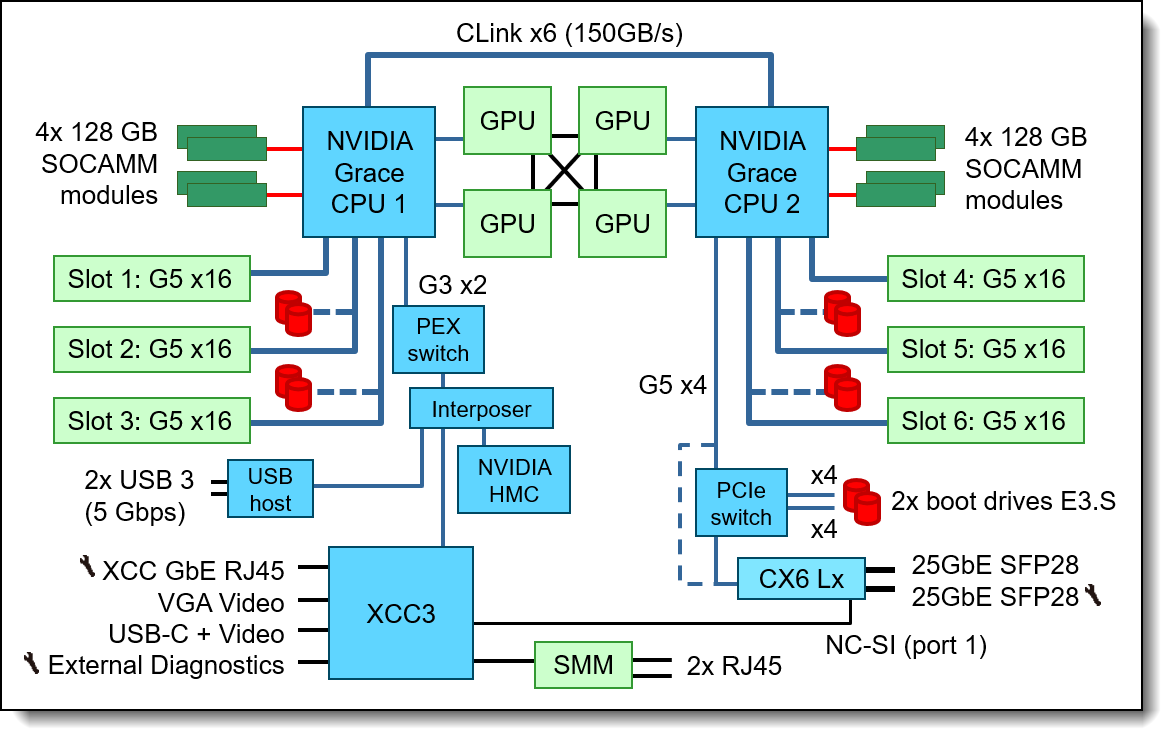

The following figure shows the architectural block diagram of the SC777 V4 best suited to AI for Science workloads. This configuration offers 4x GPUs and 6x PCIe Gen5 x16 slots all directly connected to the CPUs. This configuration optimizes network connectivity while maximizing computational efficiency, ensuring cost-effectiveness in performance.

Figure 6. SC777 V4 system architectural block diagram - AI for Science workloads

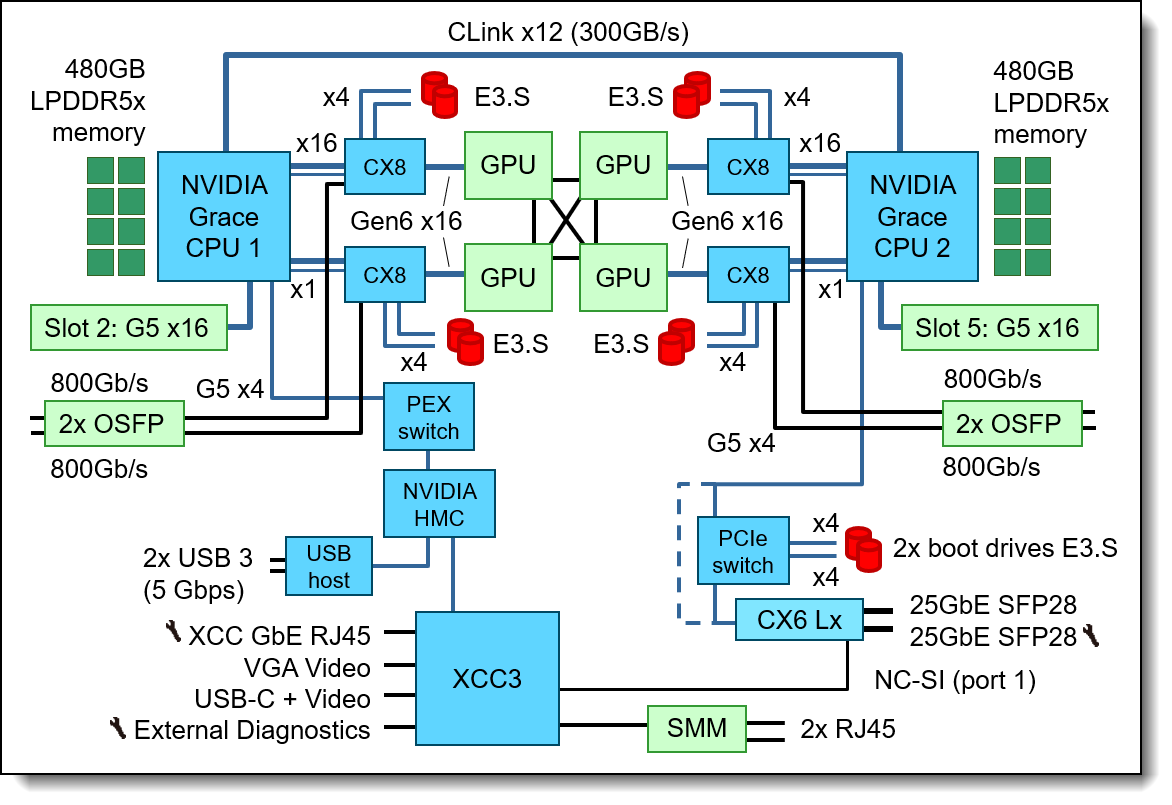

The following figure shows the architectural block diagram of the SC777 V4 best suited to AI Training workloads. This configuration implements GPUDirect by connecting the GPUs, 800Gb/s OSFP network interfaces and drives all together using ConnectX-8 switches. This configuration AI Training configuration is optimized for scale-out GPU performance which provides advantages in large AI training workloads.

Figure 7. SC777 V4 system architectural block diagram - AI Training workloads

The following table lists the standard specifications of the SC777 V4 server tray.

The ThinkSystem N1380 enclosure provides shared high-power and high-efficiency power conversion stations. The SC777 V4 servers connect to the midplane of the N1380 enclosure. This midplane connection is for power (via a 48V busbar) and control only; the midplane does not provide any I/O connectivity.

The following table lists the standard specifications of the enclosure.

The SC777 V4 node and N1380 enclosure are configured by using the configure-to-order (CTO) process with the Lenovo Cluster Solutions configurator (x-config) or in Lenovo Data Center Solution Configurator (DCSC).

The following table lists the base CTO models and base feature codes

The ThinkSystem SC777 V4 node is equipped with high-performance GPUs. It falls under classification 5A992.z per U.S. Government Export regulations, and its market and customer availability are controlled, potentially necessitating an export license.

There are two primary configurations offered with the SC777 V4. Block diagrams for these configurations are shown in the System architecture section.

AI for Science configuration:

• 4x B200 SXM7 GPU Modules directly connected to processors with x16 interface (2 to each processor)
• Network connectivity options:
  • Up to 6x ConnectX-7 (single-port 400Gb adapters or dual-port 200Gb adapters), each with a Gen5 x16 connection
  • Up to 3x ConnectX-8 (single-port 800Gb adapters), each with a Gen5 x32 connection (two x16 connections)
• Up to 8x E3.S 1T NVMe drives for data storage, directly connected to a processor (4 to each processor), with a x4 host interface
  • PCIe adapters and drives are mutually exclusive; supported combinations are as follows:
    • 2x drives can be used with 5x adapters
    • 4x drives can be used with 4x adapters
    • 6x drives can be used with 3x adapters
    • 8x drives can be used with 2x adapters
• 2x E3.S 1T NVMe drives for OS boot, connected via a switched x4 host interface to CPU 2
• 2x 25Gb Ethernet SFP28 onboard connectors based on Mellanox ConnectX-6 Lx controller

AI Training configuration:

• 4x B200 SXM7 GPU Modules connected to processors with x16 interface (2 to each processor)
• 4x ConnectX-8 I/O modules to enable high-speed PCIe Gen6 x16 GPUDirect connectivity to the GPUs and Gen5 x16 connectivity to the processors
• Each ConnectX-8 switch has directly connected to it:
  • 1x B200 SXM7 GPU Module via Gen6 x16
  • 1x Grace processor via Gen5 x16
  • 1x 800 Gb OSFP network connection
  • 2x E3.S drives for storage
• Additional network connectivity options:
  • 2x ConnectX-7 (single-port 400Gb adapters or dual-port 200Gb adapters), each with a Gen5 x16 connection
  • 1x ConnectX-8 (single-port 800Gb adapter), with a Gen5 x32 connection (two x16 connections)
• 2x E3.S 1T NVMe drives for OS boot, connected via a switched x4 host interface to CPU 2
• 2x 25Gb Ethernet SFP28 onboard connectors based on Mellanox ConnectX-6 Lx controller

The feature codes listed in the following table form the building blocks used to create the above configurations.

Configurator tips:

• The AI Training configuration is the default in DCSC, feature C8WZ
• To configure the server for AI for Science, do the following:
  1. In the PCI > Network Module section, change Network Module from C8WZ to None
  2. In the PCI > InfiniBand Adapter section, select up to 6 network adapters to be installed in the PCIe slots
  3. Feature C8X1 will automatically be derived

The SC777 V4 leverages the NVIDIA GB200 NVL4 host processor motherboard (HPM) that integrates processors, memory and GPU accelerators in a powerful package.

• Processors
• Memory
• GPU accelerators

The NVIDIA GB200 NVL4 HPM includes two NVIDIA Grace processors, as part of the NVIDIA GB200 NVL4 module. Both processors are standard in all configurations of the SC777 V4.

Each processor has the following features:

• 72 Arm Neoverse V2 cores with 4x 128b SVE2
• 3.1 GHz base frequency
• 3.0 GHz all-core SIMD frequency
• L1 cache: 64KB i-cache + 64KB d-cache
• L2 cache: 1MB per core
• L3 cache: 114MB
• 64 PCIe Gen5 lanes (implemented as 8x x8)
• 300 GB/s NVLink-C2C connectivity between processors
• 450 GB/s NVLink-C2C connectivity to two GPUs each
• NVIDIA Scalable Coherency Fabric (SCF) with 3.2 terabytes/s bisection bandwidth interconnecting Cores, Memory and IO
• 300W TDP (includes power for memory)

The NVIDIA Grace processor is integrated using Ball Grid Array (BGA) technology and is soldered onto the NVIDIA GB200 NVL4 HPM. To replace the CPU, it is necessary to replace the entire module.

The NVIDIA GB200 NVL4 HPM includes incorporates processor memory via SOCAMM modules.

Features of the memory subsystem are as follows:

• 1024GB of LPDDR5X memory is fixed configuration, 512GB per processor
• 960GB / 480GB per CPU useable with ECC
• Implemented using 8x 128GB SOCAMM modules (4 per CPU)
• Peak memory bandwidth per CPU: Up to 409.6 GB/s
• Memory clock per CPU: 6400MT/s
• Memory IO: 32 channel LPDDR5X

The Single Error Correction (SEC) and Double Error Detection (DED) algorithms as part of the ECC are designed to mitigate multi-bit aliasing and correct errors effectively. Furthermore, features such as parity, scrubbing, poisoning, and page off-lining are implemented to enhance Reliability, Availability, and Serviceability (RAS).

The SOCAMM form factor enables individual field replacement of memory modules.

The NVIDIA GB200 NVL4 HPM supports four onboard NVIDIA B200 SXM7 GPU modules. The following table lists the specifications for each GPU and for the full package. Measured performance will vary by application.

The following table lists the specifications for each GPU.

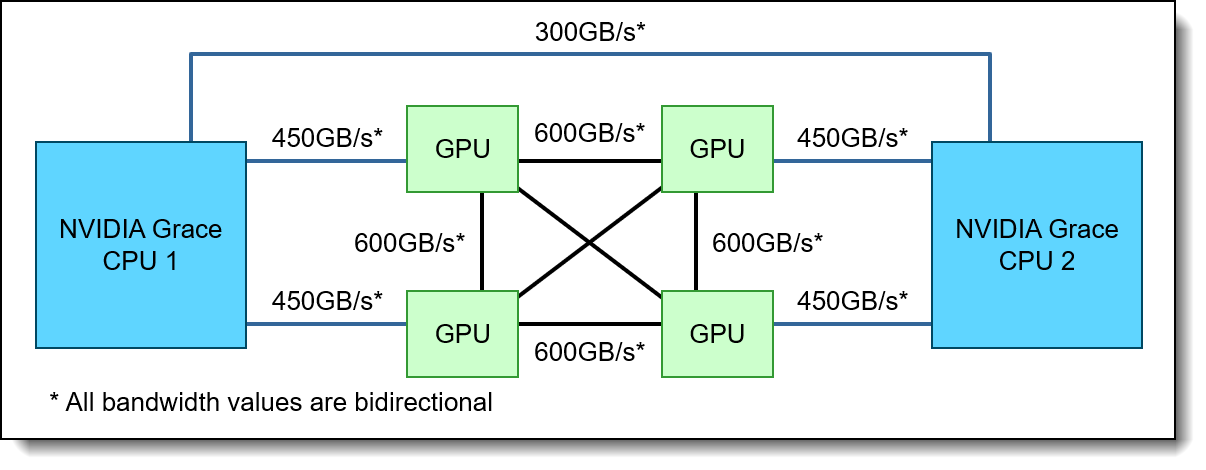

The following figure shows how the GPUs interconnect.

Figure 8. GB200-NVL4 NVLink topology

The SXM7 form factor enables individual field replacement of the GPUs.

The SC777 V4 node supports up to 10x E3.S 1T SSDs. These are internal drives - they are not front accessible and are non-hot-swap.

• 8x drives for data storage
• 2x drives for OS boot, optional; feature C51T (ThinkSystem SC777 V4 Neptune PCIe Switch Board for Boot Drives) required

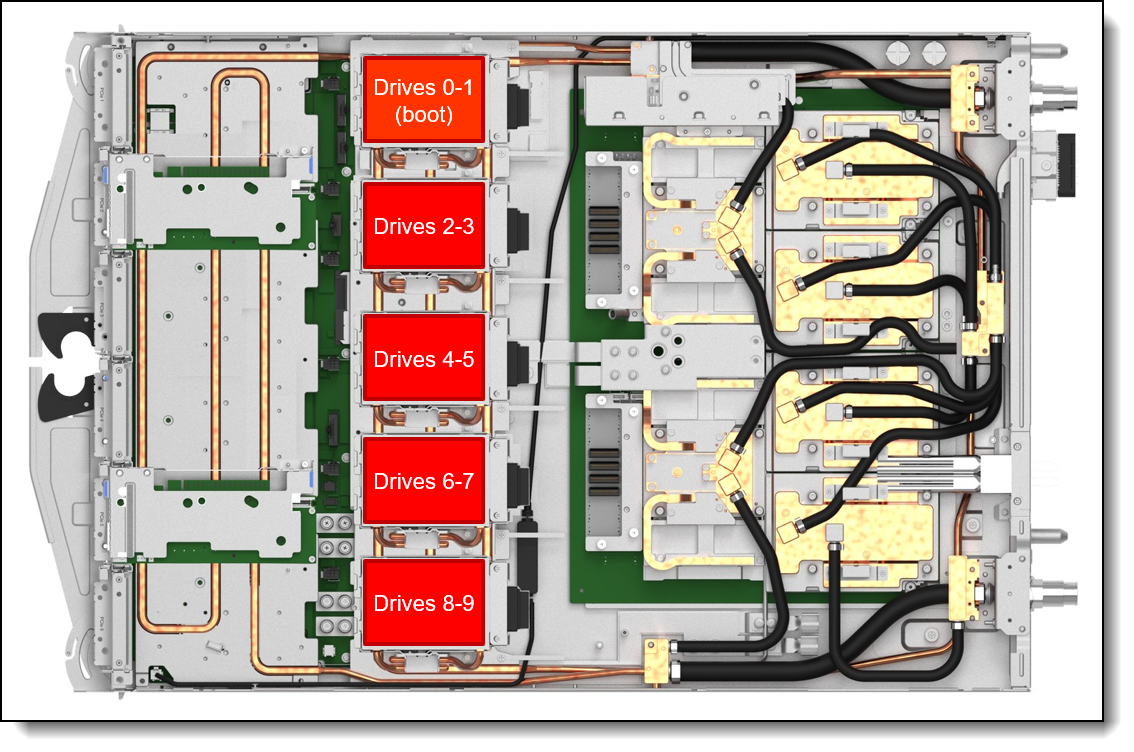

The drives are located as shown in the figure below.

Figure 9. SC777 V4 internal drive bays

Each of the 5 drive bays supports either of the following:

• 2x E3.S 1T drives
• 1x E3.S 2T drive

Configuration notes:

• The node supports only supports E3.S NVMe drives
• The drives are connected to onboard controllers; RAID functionality is provided using the operating system features
• Boot drives are the same as other drives but use switched PCIe and may have lower performance. The boot drive kit (feature C51T) is only required when a total of 10 drives are installed. The boot drive kit is not field upgradable.
• In the AI for Science configuration (see the Configurations section), the same PCIe lanes can be used either for PCIe adapters or for NVMe drives. The following table lists the supported combinations.

  Table 6. Drive and adapter combinations (AI for Science configuration)

  Data drives (E3.S 1T)	Boot drives (E3.S 1T)	Front adapter slots
  0 data drives	2 boot drives	6 adapters
  2 data drives	2 boot drives	5 adapters
  4 data drives	2 boot drives	4 adapters
  6 data drives	2 boot drives	3 adapters
  8 data drives	2 boot drives	2 adapters

• In the AI Training configuration (see the Configurations section), there is no restriction regarding the numbers of drives
• NVMe drives are connected to CPUs as follows:
  • Drives 0-1 are boot drives connected to CPU 2
  • Drives 2-5 are data storage drives connected to CPU 2
  • Drives 6-9 are data storage drives connected to CPU 1

The feature codes to select the appropriate storage cage are listed in the following table.

Each drive bay supports 1x or 2x E3.S 1T drives. If a bay is to have only 1 drive, order feature C77X for that bay; if a bay is to have 2 drives, order feature C51U for that bay. The following table lists the required quantities of each drive bay cage

The drives of the SC777 V4 are connected to integrated NVMe storage controllers.

If desired, RAID functionality is provided by the installed operating system (software RAID)

The following tables list the drive options for internal storage of the server.

The SC777 V4 node supports up to 6x front-accessible slots, depending on the configuration:

• Slots 1, 2, 3: PCIe 5.0 x16 slots connected to CPU 1
• Slots 4, 5, 6: PCIe 5.0 x16 slots connected to CPU 2

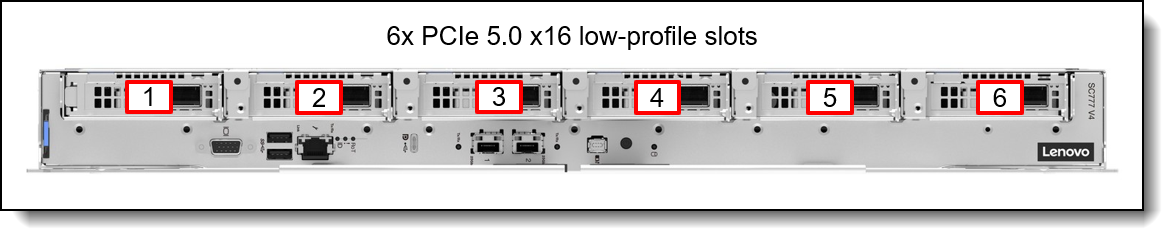

The location of the slots is shown in the following figure.

Figure 10. SC777 V4 PCIe slots

Slot availability is based on the configuration selected.

In the AI for Science configuration (see the Configurations section), PCIe adapters and data drives share the same PCIe connections to the processors. The following table lists the supported combinations of adapters and drives.

The AI Training configuration (see the Configurations section) supports:

• 2x OSFP interfaces installed in slots 3 and 4 (feature C8X0) (see OSFP 800Gb ports section)
• 2x PCIe adapters in slots 2 and 5

Slots are implemented using 1-slot risers. Ordering information for the risers plus the OSFP interface cage for AI Training configurations is in the following table.

Onboard ports

The SC777 V4 has 2x 25GbE onboard ports. The ports are connected to an onboard NVIDIA ConnectX-6 Lx controller, implemented with SFP28 cages for optical or copper connections. Supports 1Gb, 10Gb and 25Gb connections. Locations of these ports is shown in the Components and connectors section.

25GbE Port 1 supports NC-SI for remote management. For factory orders, to specify which ports should have NC-SI enabled, use the feature codes listed in the Remote Management section. If neither is chosen, both ports will have NC-SI disabled by default.

For the specifications of the 25GbE ports including the supported transceivers and cables, see the ConnectX-6 Lx product guide:
https://lenovopress.lenovo.com/lp1364-thinksystem-mellanox-connectx-6-lx-25gbe-sfp28-ethernet-adapters

OSFP 800Gb ports

The AI Training configuration includes two OSFP interface boards (feature C8X0), each providing two OSFP ports supporting transceivers or DAC cables. Supported connections are each up to 800 Gb/s (a total of 3200 Gb/s with 4x transceivers or cables). The tables below list the supported transceivers and cables.

The following table lists the supported transceivers.

The following table lists the supported optical cables.

For more information, including the supported transceivers and cables, see the adapter product guides:

• ConnectX-7: https://lenovopress.lenovo.com/lp1692-thinksystem-nvidia-connectx-7-ndr-infiniband-400gbe-osfp-adapters
• ConnectX-8: https://lenovopress.lenovo.com/lp2163-thinksystem-nvidia-connectx-8-8180-800gbs-osfp-pcie-gen6-x16-adapter

One of the most notable features of the ThinkSystem SC777 V4 offering is direct water cooling. Direct water cooling (DWC) is achieved by circulating the cooling water directly through cold plates that contact the CPU thermal case, DIMMs, drives, adapters, and other high-heat-producing components in the node.

One of the main advantages of direct water cooling is the water can be relatively warm and still be effective because water conducts heat much more effectively than air. Depending on the environmentals like water and air temperature, effectively 100% of the heat can be removed by water cooling; in configurations that stay slightly below that, the rest can be easily managed by a standard computer room air conditioner.

Allowable inlet temperatures for the water can be as high as 45°C (113°F) with the SC777 V4 for real-world applications. In most climates, water-side economizers can supply water at temperatures below 45°C for most of the year. This ability allows the data center chilled water system to be bypassed thus saving energy because the chiller is the most significant energy consumer in the data center. Typical economizer systems, such as dry-coolers, use only a fraction of the energy that is required by chillers, which produce 6-10°C (43-50°F) water. The facility energy savings are the largest component of the total energy savings that are realized when the SC777 V4 is deployed.

The advantages of the use of water cooling over air cooling result from water’s higher specific heat capacity, density, and thermal conductivity. These features allow water to transmit heat over greater distances with much less volumetric flow and reduced temperature difference as compared to air.

For cooling IT equipment, this heat transfer capability is its primary advantage. Water has a tremendously increased ability to transport heat away from its source to a secondary cooling surface, which allows for large, more optimally designed radiators or heat exchangers rather than small, inefficient fins that are mounted on or near a heat source, such as a CPU.

The SC777 V4 offering uses the benefits of water by distributing it directly to the highest heat generating node subsystem components. By doing so, the offering realizes 7% - 10% direct energy savings when compared to an air-cooled equivalent. That energy savings results from the removal of the system fans and the lower operating temp of the direct water-cooled system components.

The direct energy savings at the enclosure level, combined with the potential for significant facility energy savings, makes the SC777 V4 an excellent choice for customers that are burdened by high energy costs or with a sustainability mandate.

Water is delivered to the enclosure from a coolant distribution unit (CDU) via water hoses, inlet and return. As shown in the following figure, each enclosure connects to the CDU via rack supply hoses.

The midplane in the enclosure routes the water via QuickConnects to each of the eight nodes, and each of the four power conversion stations.

Figure 11. N1380 enclosure water connections

The water flows through the SC777 V4 tray to cool all major heat-producing components. The inlet water is split into two parallel paths, one for each node in the tray. Each path is then split further to cool the processors, memory, drives, and adapters.

During the manufacturing and test cycle, Lenovo’s water-cooled nodes are pressure tested with Helium according to ASTM E499 / E499M – 11 (Standard Practice for Leaks Using the Mass Spectrometer Leak Detector in the Detector Probe Mode) and later again with Nitrogen to detect micro-leaks which may be undetectable by pressure testing with water and/or a water/glycol mixture as Helium and Nitrogen have smaller molecule sizes.

This approach also allows Lenovo to ship the systems pressurized without needing to send hazardous antifreeze-components to our customers.

Onsite the materials used within the water loop from the CDU to the nodes should be limited to copper alloys with brazed joints, Stainless steels with TIG and MIG welded joints and EPDM rubber. In some instances, PVC might be an acceptable choice within the facility.

The water the system is filled with must be reasonably clean, bacteria-free water (< 100 CFU/ml) such as de-mineralized water, reverse osmosis water, de-ionized water, or distilled water. It must be filtered with in-line 50 micron filter. Biocide and Corrosion inhibitors ensure a clean operation without microbiological growth or corrosion. For details about the implementation of Lenovo Neptune water cooling, see the document Lenovo Neptune Direct Water-Cooling Standards.

Lenovo Data Center Power and Cooling Services can support you in the design, implementation and maintenance of the facility water-cooling infrastructure.

Water connections to the N1380 enclosure are provided using hoses that connect directly to the coolant distribution unit (CDU), either an in-rack CDU or in-row CDU. As shown in the following figure, hose lengths required depend on the placement of the N1380 in the rack cabinet.

Figure 12. Hose lengths based on the position of the N1380 enclosure in the rack cabinet

Water connections are made up of the following:

• Short hoses permanently attached to the rear of the N1380 enclosure
• Intermediate hoses, orderable as three different pairs of hoses, based on the location of the N1380 enclosure in the rack. Ordering information for these hoses is listed in the table below.
• Connection to the CDU through additional hoses or valves on the data center water loop. Lenovo Datacenter Services can provide the end-to-end enablement for your water infrastructure needs.

The Intermediate hoses have a Sanitary Flange with a 1.5-inch Tri-Clamp at the CDU/data center end, as shown in the figure below.

Figure 13. Connections of the Intermediate hoses

Ordering information for the Intermediate hoses to supply and return the water are listed in the following table. Hoses can either be stainless steel or EPDM, depending on the data center requirements.

The N1380 enclosure supports up to four water-cooled Power Conversion Stations. The use of water-cooled power conversion stations enables an even greater amount of heat can be removed from the data center using water instead of air-conditioning.

The Power Conversion Stations supply internal system power to a 48V busbar. This innovative design merges power conversion, rectification, and distribution into a single unit, a departure from traditional setups that require separate units, including separate power supplies, resulting in best-in-class efficiency.

Figure 14. N1380 power conversion stations

The N1380 supports the power conversion stations listed in the following table.

Quantities of 2, 3 or 4 are supported. The power conversion stations provide N+1 redundancy with oversubscription, depending on population and configuration of the node trays. Power policies with N+N redundancy with 4x power conversion stations are supported. Power policies with no redundancy are also supported.

The power conversion stations have the following features:

• 80 PLUS Titanium certified
• Input: 342~528Vac (nominal 380~480Vac), 3-phase WYE
• Input current: 30A per phase)
• Supports N+N, N+1 power redundancy or non-redundant power configurations:
• Power management configured through the SMM
• Built-in overload and surge protection
• Full telemetry of PCS available through SMM GUI or Redfish including: energy, power, voltage, current, and overall conversion efficiency

Power policies and power output

The following table lists the enclosure power capacity based on the power policy and the number of power modules installed.

Notes in the table:

1. N+1+OVS (oversubscription) is the default if >1 PSU is installed. N+0 is the default with 1 PSU installed.
2. If N+N is selected and there is an AC domain fault (2 PSUs go down), the power capacity is reduced to the value shown in parentheses within 1 second. Example: If 2+2 policy is selected & all 4 PSUs are operational, the power capacity is 36KWDC. If an AC domain faults, 2 PSU go down, and the power is reduced to 30KW within 1 second
3. If N+1 is selected and there is a PSU fault, the power capacity is reduced to <= the value shown in parentheses within 1 second. Example: If 3+1 policy is selected & all 4 PSUs are operational, the power capacity is 54KWDC. If a PSU faults, the power is reduced to <=45KW within 1 second. GPU trays are hard throttled w PWRBRK#. Intel trays are proprotionally throttled with Psys power capping
4. If the chassis is in the degraded redundancy state, due to 1 or more PSU faults, and an additional PSU fails, the chassis will attempt to stay alive by hard-throttling the trays (via PROCHOT# & PWRBRK#), but there is no guarantee. There is risk that the chassis could power off if the PSU rating is exceeded
5. For the redundant power policies, only OVS modes are selectable in SMM (ie. OVS is always enabled). When a user creates a hardware config in DCSC, a chassis max power estimate is completed, via an LCP API call. If the chassis DC max power is in between the chassis degraded power capacity shown in parentheses and the chassis normal power capacity, a warning is displayed stating that the server could be throttled if a PSU fails. If the customer doesn’t want potential throttling, they either need to reduce their config or select a different combo of PSUs/policy to achieve a higher power budget
6. Possible future feature

Power cables

The power conversion stations function at a 32A current, but the power cables enable two PCS units to share a single 63A connection from the data center. Consequently, for racks fully equipped with 12 power conversion stations, only six power connections from the data center are needed.

The N1380 enclosure supports the following power cables.

The SC777 V4 contains an integrated service processor, XClarity Controller 3 (XCC3), which provides advanced control, monitoring, and alerting functions. The XCC3 is based on the AST2600 baseboard management controller (BMC) using a dual-core ARM Cortex A7 32-bit RISC service processor running at 1.2 GHz.

Topics in this section:

• System I/O Board (DC-SCM)
• Local management
• External Diagnostics Handset
• System status with XClarity Mobile
• Remote management
• XCC3 Premier
• Remote management using the SMM3
• Lenovo XClarity Essentials
• Lenovo XClarity Administrator
• Lenovo XClarity One
• Lenovo Capacity Planner
• Lenovo HPC & AI Software Stack
• NVIDIA AI Enterprise

Note: The NMI (non-maskable interrupt) button is not accessible from the rear of the server. Lenovo recommends using the NMI function that is part of the XCC user interfaces instead.

Figure 15. System I/O Board

The board also has the following components:

• XClarity Controller 3, implemented using the ASPEED AST2600 baseboard management controller (BMC).
• Root of Trust (RoT) module - implements Platform Firmware Resiliency (PFR) hardware Root of Trust (RoT) which enables the server to be NIST SP800-193 compliant. For more details about PFR, see the Security section.
• MicroSD card port to enable the use of a MicroSD card for additional storage for use with the XCC3 controller. XCC3 can use the storage as a Remote Disc on Card (RDOC) device (up to 4GB of storage). It can also be used to store firmware updates (including N-1 firmware history) for ease of deployment.

  Tip: Without a MicroSD card installed, the XCC controller will have 100MB of available RDOC storage.

Ordering information for the supported Micro SD cards are listed in the MicroSD for XCC local storage section.

Information pull-out tab

The front of the server also houses an information pull-out tab (also known as the network access tag). See Figure 2 for the location. A label on the tab shows the network information (MAC address and other data) to remotely access the service processor.

Figure 17. SC777 V4 External Diagnostics Handset

Ordering information for the External Diagnostics Handset with is listed in the following table.

The steps to connect the mobile device are as follows:

1. Enable USB Management on the server, by holding down the ID button for 3 seconds (or pressing the dedicated USB management button if one is present)
2. Connect the mobile device via a USB cable to the server's USB port with the management symbol
3. In iOS or Android settings, enable Personal Hotspot or USB Tethering
4. Launch the Lenovo XClarity Mobile app

Remote management

Remote server management is provided through industry-standard interfaces:

• Intelligent Platform Management Interface (IPMI) Version 2.0
• Simple Network Management Protocol (SNMP) Version 3 (no SET commands; no SNMP v1)
• Common Information Model (CIM-XML)
• Representational State Transfer (REST) support
• Redfish support (DMTF compliant)
• Web browser - HTML 5-based browser interface (Java and ActiveX not required) using a responsive design (content optimized for device being used - laptop, tablet, phone) with NLS support

The 25Gb Port 1 connector supports NC-SI. You can enable NC-SI in the factory using the feature code listed in the following table. If the feature code isn't selected, the port will have NC-SI disabled.

XCC3 Premier includes the following functions:

• Enterprise Strict Security mode - Enforces CNSA 1.0 level security
• Remotely viewing video with graphics resolutions up to 1600x1200 at 75 Hz with up to 23 bits per pixel, regardless of the system state
• Remotely accessing the server using the keyboard and mouse from a remote client
• International keyboard mapping support
• Redirecting serial console via SSH
• Component replacement log (Maintenance History log)
• Access restriction (IP address blocking)
• Displaying graphics for real-time and historical power usage data and temperature
• Mapping the ISO and image files located on the local client as virtual drives for use by the server
• Mounting the remote ISO and image files via HTTPS, SFTP, CIFS, and NFS
• Power capping

The following additional XCC3 Premier features are planned for 2Q/2025

• System Guard - Monitor hardware inventory for unexpected component changes, and simply log the event or prevent booting
• Neighbor Group - Enables administrators to manage and synchronize configurations and firmware level across multiple servers
• Syslog alerting
• Lenovo SED security key management
• Boot video capture and crash video capture
• Virtual console collaboration - Ability for up to 6 remote users to be log into the remote session simultaneously
• Remote console Java client
• System utilization data and graphic view
• Single sign on with Lenovo XClarity Administrator
• Update firmware from a repository

Topics in this section:

• Security features
• Platform Firmware Resiliency - Lenovo ThinkShield

Security features

The server offers the following electronic security features:

• Support for Platform Firmware Resiliency (PFR) hardware Root of Trust (RoT) - see the Platform Firmware Resiliency section
• Firmware signature processes compliant with FIPS and NIST requirements
• System Guard (part of XCC3 Premier) - Proactive monitoring of hardware inventory for unexpected component changes
• Administrator and power-on password
• Integrated Trusted Platform Module (TPM) supporting TPM 2.0

The server is NIST SP 800-147B compliant.

The following table lists the security options for the SC777 V4.

Platform Firmware Resiliency - Lenovo ThinkShield

Lenovo's ThinkShield Security is a transparent and comprehensive approach to security that extends to all dimensions of our data center products: from development, to supply chain, and through the entire product lifecycle.

The ThinkSystem SC777 V4 includes Platform Firmware Resiliency (PFR) hardware Root of Trust (RoT) which enables the system to be NIST SP800-193 compliant. This offering further enhances key platform subsystem protections against unauthorized firmware updates and corruption, to restore firmware to an integral state, and to closely monitor firmware for possible compromise from cyber-attacks.

PFR operates upon the following server components:

• UEFI image – the low-level server firmware that connects the operating system to the server hardware
• XCC image – the management “engine” software that controls and reports on the server status separate from the server operating system
• FPGA image – the code that runs the server’s lowest level hardware controller on the motherboard

The Lenovo Platform Root of Trust Hardware performs the following three main functions:

• Detection – Measures the firmware and updates for authenticity
• Recovery – Recovers a corrupted image to a known-safe image
• Protection – Monitors the system to ensure the known-good firmware is not maliciously written

These enhanced protection capabilities are implemented using a dedicated, discrete security processor whose implementation has been rigorously validated by leading third-party security firms. Security evaluation results and design details are available for customer review – providing unprecedented transparency and assurance.

The SC777 V4 includes support for Secure Boot, a UEFI firmware security feature developed by the UEFI Consortium that ensures only immutable and signed software are loaded during the boot time. The use of Secure Boot helps prevent malicious code from being loaded and helps prevent attacks, such as the installation of rootkits. Lenovo offers the capability to enable secure boot in the factory, to ensure end-to-end protection. Alternatively, Secure Boot can be left disabled in the factory, allowing the customer to enable it themselves at a later point, if desired.

The following table lists the relevant feature code(s).

The SC777 V4 supports the following operating systems:

• Ubuntu 24.04 LTS 64-bit

See Operating System Interoperability Guide (OSIG) for the complete list of supported, certified, and tested operating systems, including version and point releases:
https://lenovopress.lenovo.com/osig#servers=sc777-v4-7dka

Also review the latest LeSI Best Recipe to see the operating systems that are supported via Lenovo Scalable Infrastructure (LeSI):
https://support.lenovo.com/us/en/solutions/HT505184#5

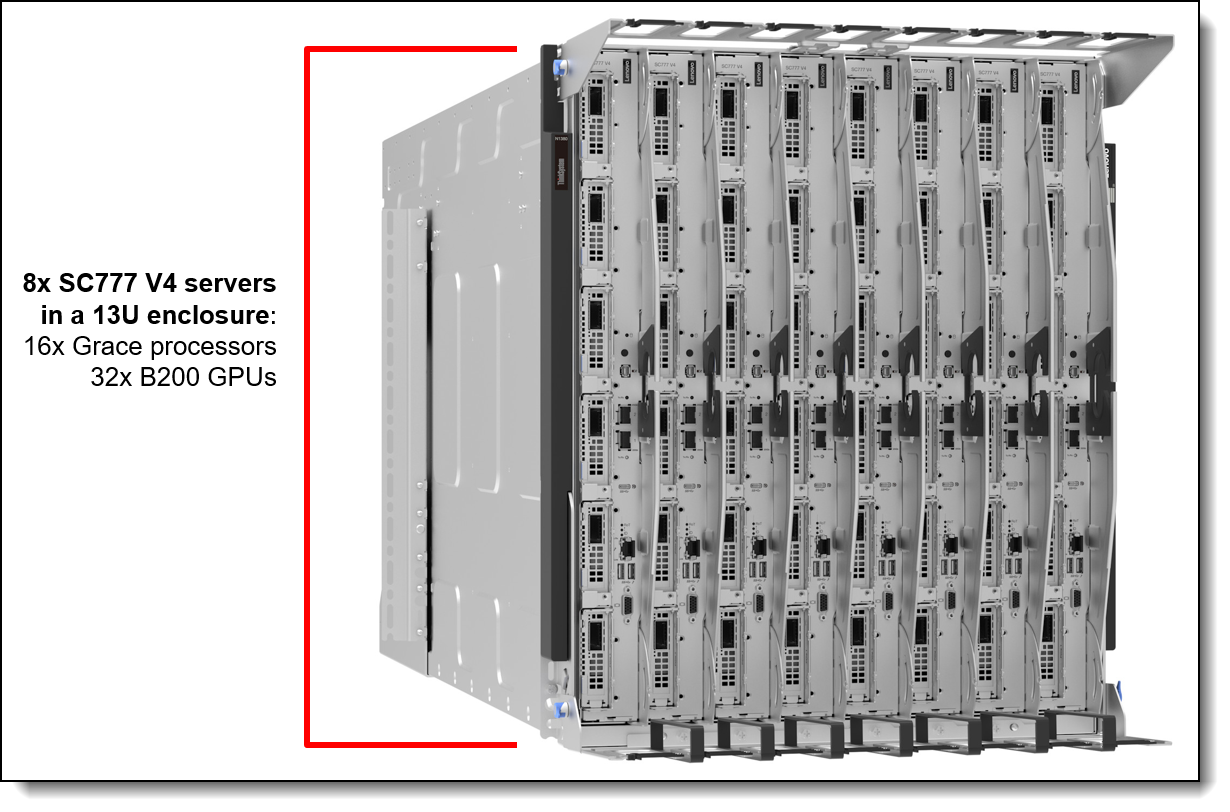

Eight SC777 V4 server trays are installed in the N1380 enclosure. Each SC777 V4 tray has the following dimensions:

• Width: 546 mm (21.5 inches)
• Height: 53 mm (2.1 inches)
• Depth: 760 mm (29.9 inches) (799 mm, including the water connections at the rear of the server)

The N1380 enclosure has the following overall physical dimensions, excluding components that extend outside the standard chassis, such as EIA flanges, front security bezel (if any), and power conversion station handles:

• Width: 540 mm (21.3 inches)
• Height: 572 mm (22.5 inches)
• Depth: 1302 mm (51.2 inches)

The following table lists the detailed dimensions. See the figure below for the definition of each dimension.

Figure 19. Enclosure dimensions

Shipping (cardboard packaging) dimensions are currently not available for the SC777 V4.

The SC777 V4 tray has the following maximum weight:

• 38 kg (83.8 lbs)

The N1380 enclosure has the following weight:

• Empty enclosure (with midplane and cables): 94 kg (208 lbs)
• Fully configured enclosure with 4x water-cooled power conversion stations and 8x SC777 V4 server trays: 487.7 kg (1075 lbs)

The enclosure has the following electrical specifications for input power conversion stations:

• Input voltage: 180-528Vac (nominal 200-480Vac), 3-phase, WYE
• Input current (each power conversion station): 30A

The SC777 V4 server trays and N1380 enclosure are supported in the following environment.

Topics in this section:

• Air temperature and humidity
• Particulate contamination

For more information, see the following documentation page:
https://pubs.lenovo.com/sc777-v4/server_specifications_environmental

Air temperature and humidity

Air temperature/humidity requirements:

• Operating: ASHRAE A2: 10°C to 35°C (50°F to 95°F); when the altitude exceeds 900 m (2953 ft), the maximum ambient temperature value decreases by 1°C (1.8°F) with every 300 m (984 ft) of altitude increase.
• Powered off: 5°C to 45°C (41°F to 113°F)
• Shipping/storage: -40°C to 60°C (-40°F to 140°F)
• Operating humidity: ASHRAE Class A2: 8% - 80%, maximum dew point : 21°C (70°F)
• Shipment/storage humidity: 8% - 90%

Altitude:

• Maximum altitude: 3048 m (10 000 ft)

The following specifications indicate the limits of particulates that the system can tolerate:

• Reactive gases:
  • The copper reactivity level shall be less than 200 Angstroms per month (Å/month)
  • The silver reactivity level shall be less than 200 Å/month
• Airborne particulates:
  • The room air should be continuously filtered with MERV 8 filters.
  • Air entering a data center should be filtered with MERV 11 or preferably MERV 13 filters.
  • The deliquescent relative humidity of the particulate contamination should be more than 60% RH
  • Environment must be free of zinc whiskers

For additional information, see the Specifications section of the documentation for the server, available from the Lenovo Documents site, https://pubs.lenovo.com/

The SC777 V4 conforms to the following standards:

• Russia, Belorussia and Kazakhstan, TP EAC 037/2016 (for RoHS)
• CE, UKCA Mark (EN55032 Class A, EN62368-1, EN55035, EN61000-3-11, EN61000-3-12, (EU) 2019/424, and EN IEC 63000 (RoHS))
• FCC - Verified to comply with Part 15 of the FCC Rules, Class A
• Canada ICES-003, issue 7, Class A
• CISPR 32, Class A, CISPR 35
• Korea KS C 9832 Class A, KS C 9835
• Japan VCCI, Class A
• Taiwan BSMI CNS15936, Class A; Section 5 of CNS15663
• Australia/New Zealand AS/NZS CISPR 32, Class A; AS/NZS 62368.1
• SGS, VOC Emission
• Japanese Energy-Saving Act
• EU2019/424 Energy Related Product (ErP Lot9)

The N1380 conforms to the following standards:

• ANSI/UL 62368-1
• Morocco CMIM Certification (CM)
• Russia, Belorussia and Kazakhstan, TP EAC 037/2016 (for RoHS)
• Russia, Belorussia and Kazakhstan, EAC: TP TC 004/2011 (for Safety); TP TC 020/2011 (for EMC)
• CE, UKCA Mark (EN55032 Class A, EN62368-1, EN55035, EN61000-3-11, EN61000-3-12, (EU) 2019/424, and EN IEC 63000 (RoHS))
• FCC - Verified to comply with Part 15 of the FCC Rules, Class A
• Canada ICES-003, issue 7, Class A
• CISPR 32, Class A, CISPR 35
• Korea KS C 9832 Class A, KS C 9835
• Japan VCCI, Class A
• Australia/New Zealand AS/NZS CISPR 32, Class A; AS/NZS 62368.1
• SGS, VOC Emission
• China CELP certificate, HJ 2507-2011

The server and enclosure have the following warranty:

• Lenovo ThinkSystem SC777 V4 (7DKA) - 3-year warranty
• Lenovo ThinkSystem N1380 Enclosure (7DDH) - 3-year warranty
• Genie Lift GL-8 Material Lift (7D5Y) - 3-year warranty though the vendor (Genie)

For more information, consult the brochure Lenovo Operational Support Services for Data Centers Services.

Lenovo Data Center Services empower you at every stage of your IT lifecycle. From expert advisory and strategic planning to seamless deployment and ongoing support, we ensure your infrastructure is built for success. Our comprehensive services accelerate time to value, minimize downtime, and free your IT staff to focus on driving innovation and business growth.

In this section:

• Lenovo Advisory Services
• Lenovo Plan & Design Services
• Lenovo Deployment, Migration, and Configuration Services
• Lenovo Support Services
• Lenovo Managed Services
• Lenovo Sustainability Services

Lenovo Deployment, Migration, and Configuration Services

Optimize your IT operations by shifting labor-intensive functions to Lenovo's skilled technicians for seamless on-site or remote deployment, configuration, and migration. Enjoy peace of mind, faster time to value, and comprehensive knowledge sharing with your IT staff, backed by our best-practice methodology.

• Deployment Services for Storage and ThinkAgile

  A comprehensive range of remote and onsite options tailored specifically for your business needs to ensure your storage and ThinkAgile hardware are fully operational from the start.

• Hardware Installation Services

  A full-range, comprehensive setup for your hardware, including unpacking, inspecting, and positioning components to ensure your equipment is operational and error-free for the most seamless and efficient installation experience, so you can quickly benefit from your investments.

• DM/DG File Migration Services

  Take the burden of file migration from your IT’s shoulders. Our experts will align your requirements and business objectives to the migration plans while coordinating with your team to plan and safely execute the data migration to your storage platforms.

• DM/DG/DE Health Check Services

  Our experts perform proactive checks of your Firmware and system health to ensure your machines are operating at peak and optimal efficiency to maximize up-time, avoid system failures, ensure the security of IT solutions and simplify maintenance.

• Factory Integrated Services

  A suite of value-added offerings provided during the manufacturing phase of a server or storage system that reduces time to value. These services aim at improving your hardware deployment experience and enhance the quality of a standard configuration before it arrives at your facility.

Lenovo Support Services

In addition to response time options for hardware parts, repairs, and labor, Lenovo offers a wide array of additional support services to ensure your business is positioned for success and longevity. Our goal is to reduce your capital outlays, mitigate your IT risks, and accelerate your time to productivity.

• Premier Support for Data Centers

  Your direct line to the solution that promises the best, most comprehensive level of support to help you fully unlock the potential of your data center.

• Premier Enhanced Storage Support (PESS)

  Gain all the benefits of Premier Support for Data Centers, adding dedicated storage specialists and resources to elevate your storage support experience to the next level.

• Committed Service Repair (CSR)

  Our commitment to ensuring the fastest, most seamless resolution times for mission-critical systems that require immediate attention to ensure minimal downtime and risk for your business. This service is only available for machines under the Premier 4-Hour Response SLA.

• Multivendor Support Services (MVS)

  Your single point of accountability for resolution support across vast range of leading Server, Storage, and Networking OEMs, allowing you to manage all your supported infrastructure devices seamlessly from a single source.

• Keep Your Drive (KYD)

  Protect sensitive data and maintain compliance with corporate retention and disposal policies to ensure your data is always under your control, regardless of the number of drives that are installed in your Lenovo server.

• Technical Account Manager (TAM)

  Your single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time, ensuring smooth operations and optimized performance as your business grows.

• Enterprise Software Support (ESS)

  Gain comprehensive, single-source, and global support for a wide range of server operating systems and Microsoft server applications.

For more information, consult the brochure Lenovo Operational Support Services for Data Centers.

Lenovo Managed Services

Achieve peak efficiency, high security, and minimal disruption with Lenovo's always-on Managed Services. Our real-time monitoring, 24x7 incident response, and problem resolution ensure your infrastructure operates seamlessly. With quarterly health checks for ongoing optimization and innovation, Lenovo's remote active monitoring boosts end-user experience and productivity by keeping your data center's hardware performing at its best.

Lenovo Managed Services provides continuous 24x7 remote monitoring (plus 24x7 call center availability) and proactive management of your data center using state-of-the-art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals.

Quarterly reviews check error logs, verify firmware & OS device driver levels, and software as needed. We’ll also maintain records of latest patches, critical updates, and firmware levels, to ensure you systems are providing business value through optimized performance.

Lenovo Sustainability Services

• Asset Recovery Services

  Lenovo Asset Recovery Services (ARS) provides a secure, seamless solution for managing end-of-life IT assets, ensuring data is safely sanitized while contributing to a more circular IT lifecycle. By maximizing the reuse or responsible recycling of devices, ARS helps businesses meet sustainability goals while recovering potential value from their retired equipment. For more information, see the Asset Recovery Services offering page.

• CO2 Offset Services

  Lenovo’s CO2 Offset Services offer a simple and transparent way for businesses to take tangible action on their IT footprint. By integrating CO2 offsets directly into device purchases, customers can easily support verified climate projects and track their contributions, making meaningful progress toward their sustainability goals without added complexity.

• Lenovo Certified Refurbished

  Lenovo Certified Refurbished offers a cost-effective way to support IT circularity without compromising on quality and performance. Each device undergoes rigorous testing and certification, ensuring reliable performance and extending its lifecycle. With Lenovo’s trusted certification, you gain peace of mind while making a more sustainable IT choice.

• Data Center Power and Cooling Services

  The Data Center Infrastructure team will provide solution design and implementation services to support the power and cooling needs of the multi-node chassis and multi-rack solutions. This includes designing for various levels of power redundancy and integration into the customer power infrastructure. The Infrastructure team will work with site engineers to design an effective cooling strategy based on facility constraints or customer goals and optimize a cooling solution to ensure high efficiency and availability. The Infrastructure team will provide the detailed solution design and complete integration of the cooling solution into the customer data center. In addition, the Infrastructure team will provide rack and chassis level commissioning and stand-up of the water-cooled solution which includes setting and tuning of the flow rates based on water temperature and heat recovery targets. Lastly, the Infrastructure team will provide cooling solution optimization and performance validation to ensure the highest overall operational efficiency of the solution.

Lenovo TruScale XaaS is your set of flexible IT services that makes everything easier. Streamline IT procurement, simplify infrastructure and device management, and pay only for what you use – so your business is free to grow and go anywhere.

Lenovo TruScale is  the unified solution that gives you simplified access to:

• The industry’s broadest portfolio – from pocket to cloud – all delivered as a service
• A single-contract framework for full visibility and accountability
• The global scale to rapidly and securely build teams from anywhere
• Flexible fixed and metered pay-as-you-go models with minimal upfront cost
• The growth-driving combination of hardware, software, infrastructure, and solutions – all from one single provider with one point of accountability.

For information about Lenovo TruScale offerings that are available in your region, contact your local Lenovo sales representative or business partner.

The N1380 enclosure is supported in the following racks:

• Lenovo EveryScale 42U Onyx Heavy Duty Rack Cabinet, model 1410-O42
• Lenovo EveryScale 42U Pearl Heavy Duty Rack Cabinet, model 1410-P42
• Lenovo EveryScale 48U Onyx Heavy Duty Rack Cabinet, model 1410-O48
• Lenovo EveryScale 48U Pearl Heavy Duty Rack Cabinet, model 1410-P48

Considering the weight of the trays in the enclosure, an onsite material lift is required to allow service by a single person. If you do not already have a material lift available, Lenovo offers the Genie Lift GL-8 material lift as configurable option to the rack cabinets. Ordering information is listed in the following table.

Note: If neither the Genie Lift GL-8 nor the ServerLift SL-350x is available onsite when onsite service is required, the customer will be responsible for getting the system to a suitable work surface (with access to power) prior to service technician arrival and returning the system to the rack when service is complete prior to service technician departure.

Configuration rules:

• For the SC777 V4, you will also need to order the Genie Lift GL-8 Option Kit for N1380 and SC-Series Systems (4XF7B04136) which includes the components needed to safely remove and install a SC777 V4 tray or a Power Conversion Station if maintenance of these components is required.
• Optionally, Lenovo also offers a 4-Wheel Utility Cart (4XF7B05731).

Ordering information is listed in the following table.

For details about these components, see the following Lenovo Pubs pages:

• Putting together the lift tool assembly:
  https://pubs.lenovo.com/n1380/install_lift_tool_assembly
• Putting together the rotate fixture cart assembly:
  https://pubs.lenovo.com/n1380/install_rotate_fixture_cart_assembly

For instructions on how these components are used to remove a SC777 V4 tray or a Power Conversion Station, see the following Lenovo Pubs pages:

• Usage scenario: Remove a Server from the N1380:
  https://pubs.lenovo.com/n1380/remove_a_water_cooled_technology_tray
• Usage scenario: Remove a Power Conversion Station from the N1380:
  https://pubs.lenovo.com/n1380/remove_the_dwc_pcs

Why wait to obtain the technology you need now? No payments for 90 days and predictable, low monthly payments make it easy to budget for your Lenovo solution.

• Flexible

  Our in-depth knowledge of the products, services and various market segments allows us to offer greater flexibility in structures, documentation and end of lease options.

• 100% Solution Financing

  Financing your entire solution including hardware, software, and services, ensures more predictability in your project planning with fixed, manageable payments and low monthly payments.

• Device as a Service (DaaS)

  Leverage latest technology to advance your business. Customized solutions aligned to your needs. Flexibility to add equipment to support growth. Protect your technology with Lenovo's Premier Support service.

• 24/7 Asset management

  Manage your financed solutions with electronic access to your lease documents, payment histories, invoices and asset information.

• Fair Market Value (FMV) and $1 Purchase Option Leases

  Maximize your purchasing power with our lowest cost option. An FMV lease offers lower monthly payments than loans or lease-to-own financing. Think of an FMV lease as a rental. You have the flexibility at the end of the lease term to return the equipment, continue leasing it, or purchase it for the fair market value. In a $1 Out Purchase Option lease, you own the equipment. It is a good option when you are confident you will use the equipment for an extended period beyond the finance term. Both lease types have merits depending on your needs. We can help you determine which option will best meet your technological and budgetary goals.

Ask your Lenovo Financial Services representative about this promotion and how to submit a credit application. For the majority of credit applicants, we have enough information to deliver an instant decision and send a notification within minutes.

The following sales training courses are offered for employees and partners (login required). Courses are listed in date order.

1. VTT HPC: Lenovo HPC in an Evolving Market
   2024-11-08 | 88 minutes | Employees and Partners
   Details
   VTT HPC: Lenovo HPC in an Evolving Market



   View this session as David DeCastro, Director of HPC Solutions Architecture, ISG, speaks with us about HPC at Lenovo.

   He will talk about:
   • Competing with Lenovo Neptune Liquid Cooling
   • Advanced computing in today’s HPC market
   - Introducing “Australia” Advanced Computing Platform
   • HPC & AI Storage:
   - What makes it specific to HPC?
   - What are we offering?

   Tags: High-Performance Computing (HPC), Technical Sales

   Published: 2024-11-08
   Length: 88 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: DVHPC217
2. Q1 Solutions Launch Lenovo ThinkSystem SC777 V4 Neptune® Quick Hit
   2025-04-15 | 5 minutes | Employees and Partners
   Details
   Q1 Solutions Launch Lenovo ThinkSystem SC777 V4 Neptune® Quick Hit



   Lenovo announces the Lenovo ThinkSystem SC777 V4 Neptune®, the first server in the supercomputing class powered by the NVIDIA GB200 platform. The Lenovo ThinkSystem SC777 V4 Neptune excels in HPC environments for intensive modeling and simulation workloads and Hybrid AI. It’s designed to handle technical computing, grid deployments, and analytics workloads in various fields such as research, life sciences, energy, engineering, and financial simulation.

   Tags: Artificial Intelligence (AI), High-Performance Computing (HPC), Nvidia, Server, ThinkSystem

   Published: 2025-04-15
   Length: 5 minutes


   Start the training:
   Employee link: Grow@Lenovo
   Partner link: Lenovo Partner Learning


   Course code: SXXW2545a

For more information, see these resources:

• ThinkSystem SC777 V4 server product page
  https://www.lenovo.com/us/en/p/servers-storage/servers/supercomputing/lenovo-thinksystem-sc777-v4-neptune/len21ts0041
• ThinkSystem N1380 enclosure product page
  https://www.lenovo.com/us/en/p/servers-storage/servers/supercomputing/lenovo-thinksystem-n1380-neptune/len21ts0038
• ThinkSystem SC777 V4 datasheet
  https://lenovopress.lenovo.com/datasheet/ds0190-lenovo-thinksystem-sc777-v4
• ThinkSystem N1380 enclosure datasheet
  https://lenovopress.com/DS0187
• Interactive 3D Tour of the ThinkSystem SC777 V4:
  https://lenovopress.lenovo.com/lp2047-3d-tour-thinksystem-sc777-v4
• ThinkSystem SC777 V4 drivers and support
  http://datacentersupport.lenovo.com/products/servers/thinksystem/sc777v4/7dka/downloads
• Lenovo ThinkSystem SC777 V4 product publications:
  https://pubs.lenovo.com/sc777-v4/
  • Quick Start
  • Rack Installation Guide
  • Setup Guide
  • Maintenance Manual
  • Messages and Codes Reference
  • UEFI Manual
• ServerProven hardware compatibility:
  https://serverproven.lenovo.com/
• Data Center Solution Configurator (DCSC)
  https://dcsc.lenovo.com
• Lenovo Cluster solutions configurator (x-config)
  https://lesc.lenovo.com/products/hardware/configurator/worldwide/bhui/asit/index.html
